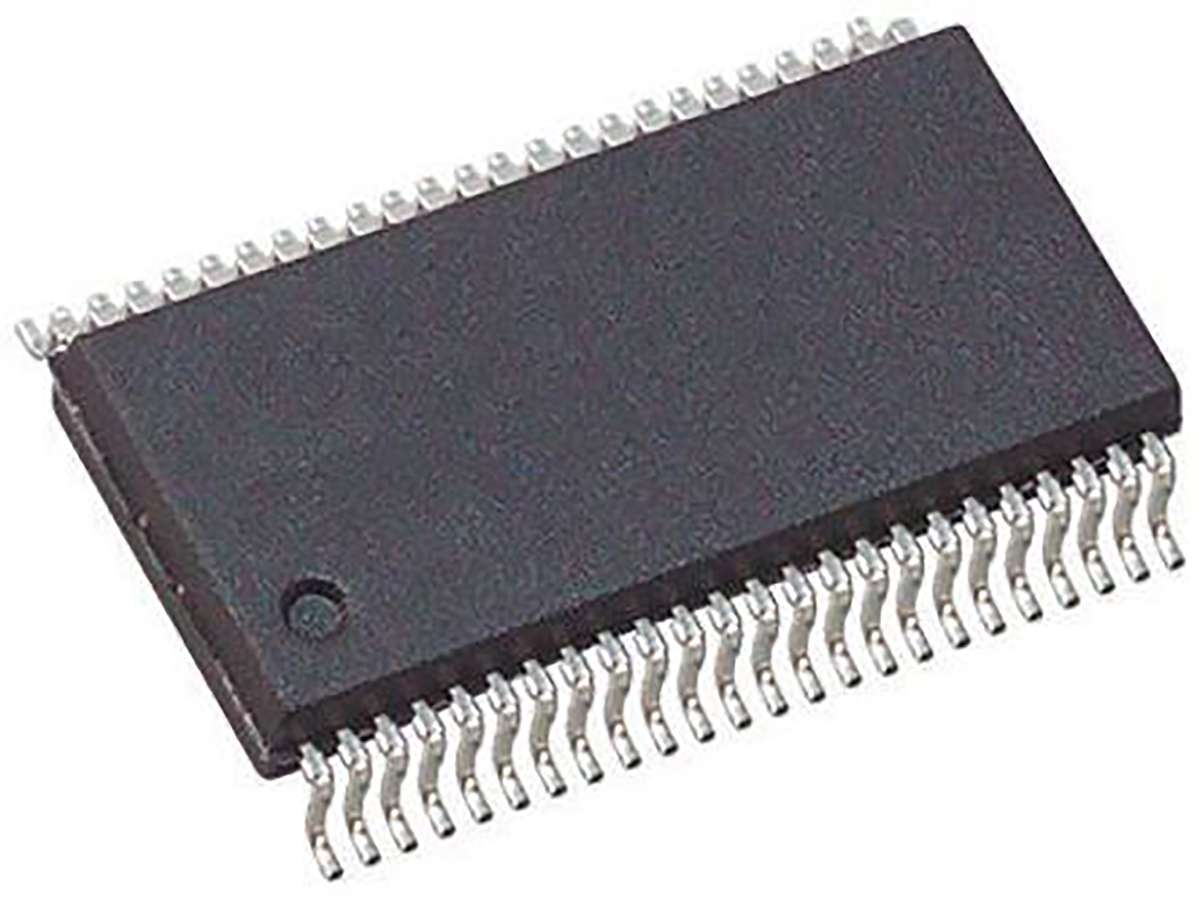

Nexperia 74LVT16374ADGG,112 16-Bit D Type Flip Flop IC, 3-State, 2.7 → 3.6 V, 48-Pin TSSOP

74LVT16374ADGG-112 Nexperia 74LVT16374ADGG,112 16-Bit D Type Flip Flop IC, 3-State, 2.7 → 3.6 V, 48-Pin TSSOP
Nexperia

Product Information

Polarity:
Non-Inverting
Dimensions:
12.6 x 6.2 x 1.05mm
Logic Family:
74LVT
Width:
6.2mm
Input Type:
BiCMOS
Maximum Propagation Delay Time @ Maximum CL:
5.6 ns @ 50 pF
Minimum Operating Supply Voltage:
2.7 V
Output Type:
3 State
Package Type:
TSSOP
Number of Elements per Chip:
16
Maximum Operating Temperature:
+85 °C
Set/Reset:
Reset
Output Signal Type:
Single Ended
Length:
12.6mm
Pin Count:
48
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
1.05mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Negative Edge, Positive Edge
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 16-Bit D Type Flip Flop IC 3-State 2.7 → 3.6 V 48-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74LVT16374ADGG,112. While providing non-inverting polarity. The given dimensions of the product include 12.6 x 6.2 x 1.05mm. The logic family is 74lvt. Furthermore, the product is 6.2mm wide. It carries bicmos input type. It provides up to 5.6 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2.7 v. Furthermore, it has a3 state output. The package is a sort of tssop. It consists of 16 elements per chip. It has a maximum operating temperature of +85 °c. It has a set/reset or reset feature . The output signal is a kind of single ended. Its accurate length is 12.6mm. It contains 48 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a negative edge, positive edge type triggering . Features 50pf of propagation delay test condition.

pdf icon
74LVT16374ADGG D-type Flip-Flop Data Sheet(Technical Reference)
