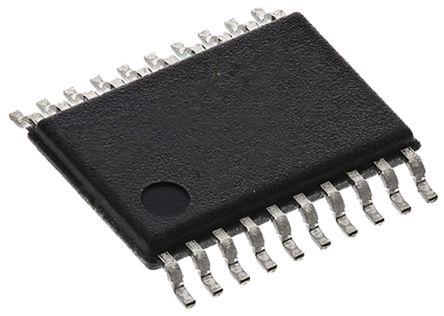

ON Semiconductor 74VHC273MTC Octal D Type Flip Flop IC, CMOS, 2 → 5.5 V, 20-Pin TSSOP

74VHC273MTC ON Semiconductor  Octal D Type Flip Flop IC, CMOS, 2 → 5.5 V, 20-Pin TSSOP
74VHC273MTC
ON Semiconductor

Product Information

Polarity:
Non-Inverting
Dimensions:
6.5 x 4.4 x 0.9mm
Logic Family:
74VHC
Width:
4.4mm
Input Type:
TTL
Maximum Propagation Delay Time @ Maximum CL:
19.5 ns@ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
CMOS
Package Type:
TSSOP
Number of Elements per Chip:
8
Maximum Operating Temperature:
+85 °C
Set/Reset:
Master Reset
Output Signal Type:
Single Ended
Length:
6.5mm
Pin Count:
20
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
0.9mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Octal D Type Flip Flop IC CMOS 2 → 5.5 V 20-Pin TSSOP manufactured by ON Semiconductor. The manufacturer part number is 74VHC273MTC. While providing non-inverting polarity. The given dimensions of the product include 6.5 x 4.4 x 0.9mm. The logic family is 74vhc. Furthermore, the product is 4.4mm wide. It carries ttl input type. It provides up to 19.5 ns@ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has acmos output. The package is a sort of tssop. It consists of 8 elements per chip. It has a maximum operating temperature of +85 °c. It has a set/reset or master reset feature . The output signal is a kind of single ended. Its accurate length is 6.5mm. It contains 20 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 0.9mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a positive edge type triggering . Features 50pf of propagation delay test condition.

pdf icon
74VHC273, Octal D-Type Flip-Flop Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
