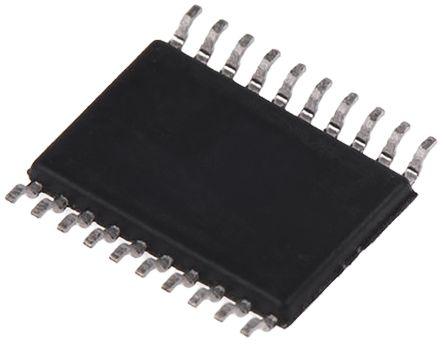

NXP 74LVC574APW,112 Octal D Type Flip Flop IC, 3-State, 1.2 → 3.6 V, 20-Pin TSSOP

74LVC574APW-112 NXP 74LVC574APW,112 Octal D Type Flip Flop IC, 3-State, 1.2 → 3.6 V, 20-Pin TSSOP
74LVC574APW,112
Nexperia

Product Information

Polarity:
Non-Inverting
Dimensions:
6.6 x 4.5 x 0.95mm
Logic Family:
LVC
Width:
4.5mm
Input Type:
Single Ended
Maximum Propagation Delay Time @ Maximum CL:
3.6 ns @ 2.7 V
Minimum Operating Supply Voltage:
1.2 V
Output Type:
3 State
Package Type:
TSSOP
Number of Elements per Chip:
8
Maximum Operating Temperature:
+125 °C
Output Signal Type:
Single Ended
Length:
6.6mm
Pin Count:
20
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is NXP Octal D Type Flip Flop IC 3-State 1.2 → 3.6 V 20-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74LVC574APW,112. While providing non-inverting polarity. The given dimensions of the product include 6.6 x 4.5 x 0.95mm. The logic family is lvc. Furthermore, the product is 4.5mm wide. It carries single ended input type. It provides up to 3.6 ns @ 2.7 v maximum propagation delay time. While its minimum operating supply voltage is 1.2 v. Furthermore, it has a3 state output. The package is a sort of tssop. It consists of 8 elements per chip. It has a maximum operating temperature of +125 °c. The output signal is a kind of single ended. Its accurate length is 6.6mm. It contains 20 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a positive edge type triggering . Features 50pf of propagation delay test condition.
