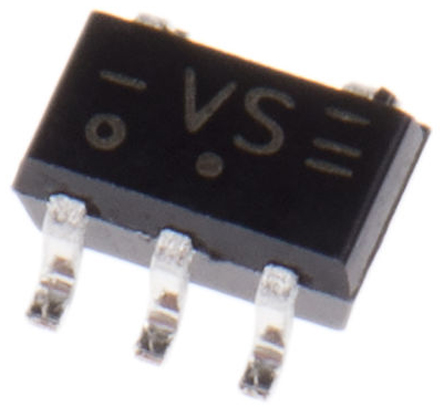

Nexperia 74LVC1G80GW,125 D Type Flip Flop IC, TTL, 5-Pin TSSOP

Enrgtech Part No: ET16799451
|
Manufacturer Part No:
74LVC1G80GW,125
|
Manufacturer: Nexperia

74LVC1G80GW-125 Nexperia 74LVC1G80GW,125 D Type Flip Flop IC, TTL, 5-Pin TSSOP

Product Information

Polarity:

Inverting

Dimensions:

2.25 x 1.35 x 1mm

Logic Family:

74LVC

Width:

1.35mm

Input Type:

Single Ended

Maximum Propagation Delay Time @ Maximum CL:

8 ns@ 50 pF

Minimum Operating Supply Voltage:

1.65 V

Output Type:

TTL

Package Type:

TSSOP

Number of Elements per Chip:

Maximum Operating Temperature:

+125 °C

Output Signal Type:

Single Ended

Checking for live stock

The Nexperia 74LVC1G80GW,125 is a high-performance D-type flip-flop IC, designed to meet the needs of modern digital systems. With its TTL compatibility and 5-pin TSSOP package, it offers a compact, reliable solution for data storage and transfer. Ideal for UK-based engineers, it is perfect for applications requiring high-speed signal processing and reliable memory storage, ensuring efficiency in various electronics projects. This flip-flop IC ensures fast and reliable data latching, offering stability in signal processing for digital circuits and being ideal for different applications.

Working Principle of the Nexperia 74LVC1G80GW,125 D Type Flip Flop IC

The 74LVC1G80GW,125 captures data on the rising edge of a clock signal, storing a single bit of information. It is designed to ensure low-voltage operation while providing high-speed output for reliable digital storage.

Salient Features Include

TTL Compatible for Easy Integration.
5-Pin TSSOP Package for Space-Saving Designs.
Low Power Consumption.
High-Speed Operation.

Notable Advantages of Buying the 74LVC1G80GW,125 D Type Flip Flop IC, TTL, 5-Pin TSSOP

Reliable data latching for digital systems.
Compact size for efficient use in tight spaces.
Energy-efficient for low-power designs.

Broad Range Applications

Digital logic circuits
Timing and clock systems
Microcontroller interfacing
Signal processing in communication systems
