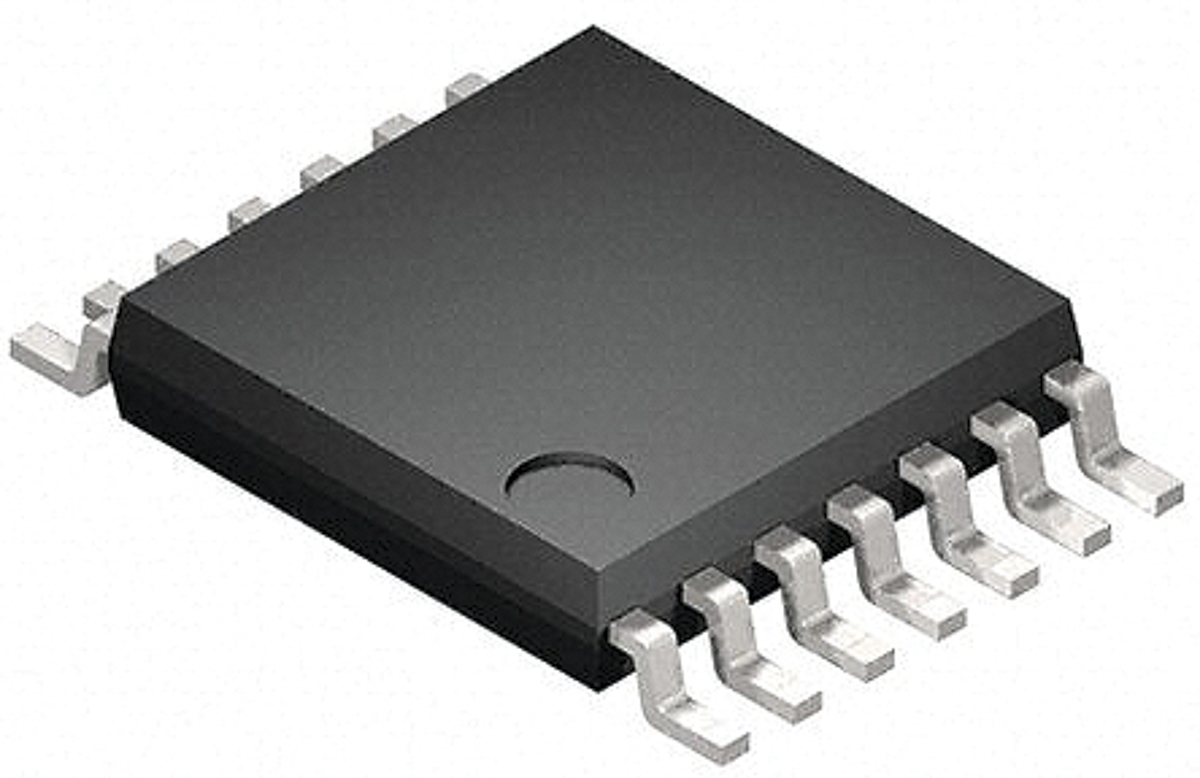

Toshiba 74VHC74FT Dual D Type Flip Flop IC, CMOS, 14-Pin TSSOP

74VHC74FT Toshiba  Dual D Type Flip Flop IC, CMOS, 14-Pin TSSOP
Toshiba

Product Information

Polarity:
Inverting
Dimensions:
5 x 4.4 x 1mm
Logic Family:
74VHC
Width:
4.4mm
Input Type:
CMOS, TTL
Automotive Standard:
AEC-Q100
Maximum Propagation Delay Time @ Maximum CL:
20 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
CMOS
Package Type:
TSSOP
Number of Elements per Chip:
2
Maximum Operating Temperature:
+125 °C
Set/Reset:
Preset
Output Signal Type:
Differential
Length:
5mm
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
1mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Dual D Type Flip Flop IC CMOS 14-Pin TSSOP manufactured by Toshiba. The manufacturer part number is 74VHC74FT. While providing inverting polarity. The given dimensions of the product include 5 x 4.4 x 1mm. The logic family is 74vhc. Furthermore, the product is 4.4mm wide. It carries cmos, ttl input type. The product complies with automotive standard - aec-q100. It provides up to 20 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has acmos output. The package is a sort of tssop. It consists of 2 elements per chip. It has a maximum operating temperature of +125 °c. It has a set/reset or preset feature . The output signal is a kind of differential. Its accurate length is 5mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a positive edge type triggering . Features 50pf of propagation delay test condition.
