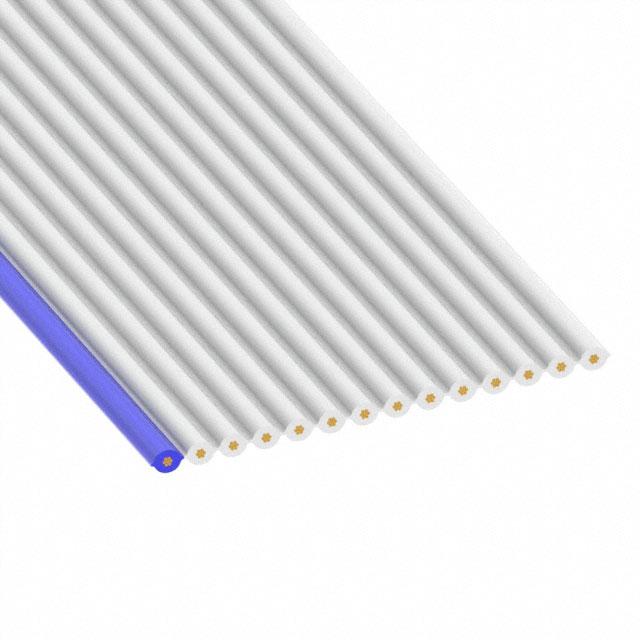

3M 3609/14

3609-14 3M 3609/14
3M

Product Information

Ribbon Width:
0.350" (8.89mm)
Ratings:
-
First Conductor Mark:
Blue
HTSUS:
8544.49.3080
RoHS Status:
RoHS Compliant
Jacket (Insulation) Material:
Fluorinated Ethylene-Propylene (FEP)
Conductor Strand:
7 Strands / 38 AWG
Operating Temperature:
-55°C ~ 150°C
Insulation Resistance:
10GOhm
Shielding:
Unshielded
Number of Conductors:
14
REACH Status:
REACH Unaffected
Ribbon Thickness:
0.024" (0.61mm)
Package:
Spool
Wire Gauge:
30 AWG
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
17 Weeks
Features:
-
Conductor Material:
Copper, Silver Coated
Series:
3609
Cable Type:
Flat Cable
Voltage:
150 V
Pitch:
0.025" (0.64mm)
ECCN:
EAR99
Base Product Number:
3609
Jacket Color:
White
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 3609/14. The ribbon is 0.350" (8.89mm) wide. The given first conductor has a blue mark. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs compliant. Its jacket is made from highly insulated fluorinated ethylene-propylene (fep) materials. It also features a 7 strands / 38 awg conductor strand. The product has -55°c ~ 150°c operating temperature range. It has an insulation resistance of 10gohm . Furthermore, the product is shielded with unshielded. It features 14 conductors. In addition, it is reach unaffected. While the given ribbon is 0.024" (0.61mm) thick. It is shipped in spool package . Moreover, the product has a wire gauge of 30 awg. Its typical moisture sensitivity level is not applicable. It has a long 17 weeks standard lead time. The conductor is made from copper, silver coated material. The product 3609, is a highly preferred choice for users. It is a typical flat cable cable. It carries a 150 v of voltage. Moreover, the product is 0.025" (0.64mm). The product is designated with the ear99 code number. Moreover, it corresponds to 3609, a base product number of the product. It comes in nice white colour.

pdf icon
Cables & Accessories Selection Guide(Design Resources)
pdf icon
360y - ordering mpn chg 10/NOV/2020(PCN Part Number)
pdf icon
COO & Order part number chg 25/OCT/2021(PCN Assembly/Origin)
