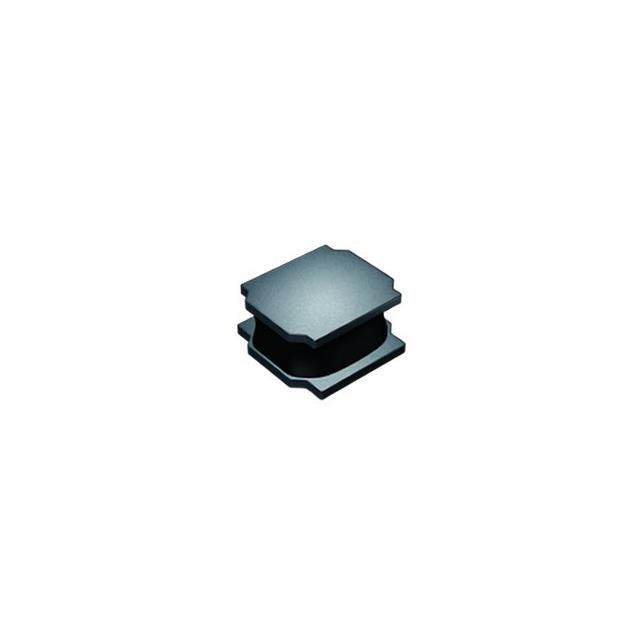

Taiyo Yuden LLXBH8080YBL4R7N

LLXBH8080YBL4R7N Taiyo Yuden
Taiyo Yuden

Product Information

Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-25°C ~ 120°C
Package / Case:
3131 (8080 Metric)
Tolerance:
±30%
Shielding:
Shielded
DC Resistance (DCR):
18mOhm
Height - Seated (Max):
0.165" (4.20mm)
Type:
Wirewound
Inductance:
4.7 µH
Size / Dimension:
0.315" L x 0.315" W (8.00mm x 8.00mm)
Current - Saturation (Isat):
4.7A
Material - Core:
Ferrite
Current Rating (Amps):
4.1 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
30MHz
Features:
-
Mounting Type:
Surface Mount
Series:
LLXB
Supplier Device Package:
3131
Packaging:
Tape & Reel (TR)
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Taiyo Yuden. The manufacturer part number is LLXBH8080YBL4R7N. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 100 khz is its inductance frequency value. The product has -25°c ~ 120°c operating temperature range. Moreover, the product comes in 3131 (8080 metric). It features ±30% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 18mohm. It has the maximum seated height of 0.165" (4.20mm). It comes in wirewound configuration. The product has a 4.7 µh inductance value. The product's diameters include 0.315" l x 0.315" w (8.00mm x 8.00mm). It has a 4.7a saturation current. It is made from durable ferrite. Additionally, the product's output is 4.1 a. Its typical moisture sensitivity level is 1 (unlimited). 30mhz is the self-resonant frequency of the product. The product is available in surface mount configuration. The product llxb, is a highly preferred choice for users. 3131 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
NRND 14/JUN/2024(PCN Part Status Change)

Reviews

  • Be the first to review.

Enrgtech, with headquarter in Bradford, UK, is recognized as a leading innovator and distributor of electronic components, including Fixed Inductors with vast collections of different Taiyo Yuden LLXBH8080YBL4R7N worldwide. We offer the latest Fixed Inductors from the branded manufacturers Taiyo Yuden, which is a two-terminal component Taiyo Yuden LLXBH8080YBL4R7N, also known as the coil, choke, or reactor, capable of storing energy in the magnetic field by flowing electric current through it. The collection in Fixed Inductors contains various products like Taiyo Yuden LLXBH8080YBL4R7N with LLXBH8080YBL4R7N, which offers the advantages of small size, lightweight, stable structure, convenient use, and installation. Furthermore, these Fixed Inductors are comprised of different types of products (such as Taiyo Yuden LLXBH8080YBL4R7N) designed for circuits such as filtering, oscillation, trapping, and delay.

Get the latest and fault-tolerant Fixed Inductors with varieties of Taiyo Yuden LLXBH8080YBL4R7N by visiting our stock collection pages to get the products from the comfort of your homes. Customers can get exclusive offers by ordering different varieties of Fixed Inductors based on various Taiyo Yuden LLXBH8080YBL4R7N and other products. We ensure the delivery of Taiyo Yuden LLXBH8080YBL4R7N in the exact condition, and customers can order Fixed Inductors based on their required applications. Access the details of the order(s) by tracking the ET23550278 of the product. For further queries about Taiyo Yuden LLXBH8080YBL4R7N shipment, visit our website and email us at sales@enrgtech.co.uk or connect with our customer support team by calling at +44 (0) 3303 800 157.
