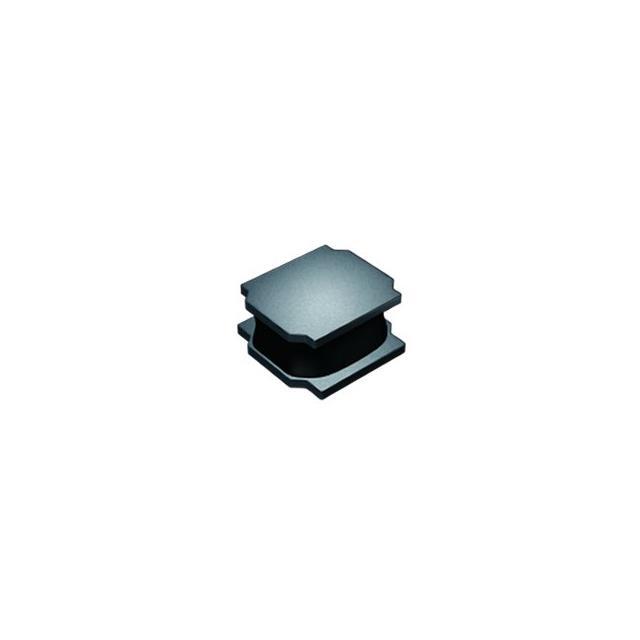

Taiyo Yuden LLXBH8080YBL1R4N

LLXBH8080YBL1R4N Taiyo Yuden
Taiyo Yuden

Product Information

Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-25°C ~ 120°C
Package / Case:
3131 (8080 Metric)
Tolerance:
±30%
Shielding:
Shielded
DC Resistance (DCR):
7mOhm
Height - Seated (Max):
0.165" (4.20mm)
title:
LLXBH8080YBL1R4N
Type:
Wirewound
Inductance:
1.4 µH
Size / Dimension:
0.315" L x 0.315" W (8.00mm x 8.00mm)
Current - Saturation (Isat):
9A
Material - Core:
Ferrite
Current Rating (Amps):
7 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
63MHz
Features:
-
Mounting Type:
Surface Mount
Series:
LLXB
Supplier Device Package:
3131
Packaging:
Tape & Reel (TR)
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Taiyo Yuden. The manufacturer part number is LLXBH8080YBL1R4N. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 100 khz is its inductance frequency value. The product has -25°c ~ 120°c operating temperature range. Moreover, the product comes in 3131 (8080 metric). It features ±30% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 7mohm. It has the maximum seated height of 0.165" (4.20mm). It comes in wirewound configuration. The product has a 1.4 µh inductance value. The product's diameters include 0.315" l x 0.315" w (8.00mm x 8.00mm). It has a 9a saturation current. It is made from durable ferrite. Additionally, the product's output is 7 a. Its typical moisture sensitivity level is 1 (unlimited). 63mhz is the self-resonant frequency of the product. The product is available in surface mount configuration. The product llxb, is a highly preferred choice for users. 3131 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
NRND 14/JUN/2024(PCN Part Status Change)
