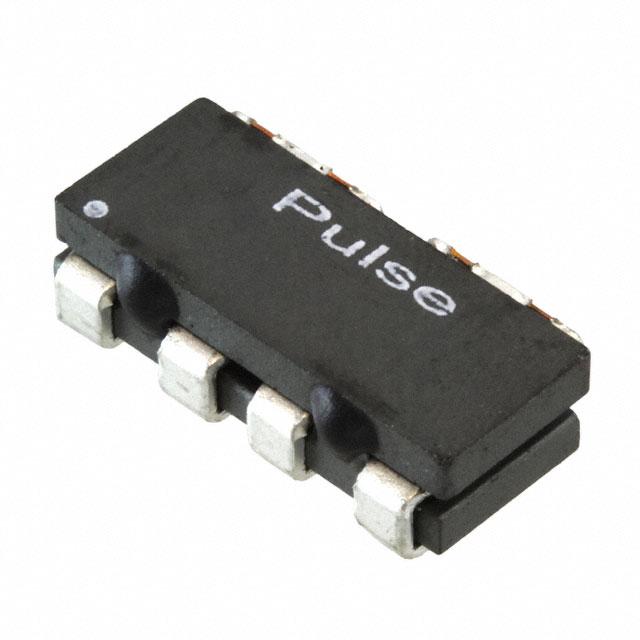

Pulse Electronics PA1312NLT

PA1312NLT Pulse Electronics
Pulse Electronics

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 130°C
Package / Case:
Nonstandard
Tolerance:
±20%
Shielding:
Shielded
DC Resistance (DCR):
0.5mOhm Max
Height - Seated (Max):
0.205" (5.20mm)
title:
PA1312NLT
Type:
-
REACH Status:
REACH Unaffected
Inductance:
310 nH
Size / Dimension:
0.720" L x 0.354" W (18.29mm x 9.00mm)
Current - Saturation (Isat):
-
Material - Core:
-
Current Rating (Amps):
40 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Features:
-
Mounting Type:
Surface Mount
Series:
PA1312NL
Supplier Device Package:
-
Packaging:
Tape & Reel (TR)
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is PA1312NLT. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. The product has -40°c ~ 130°c operating temperature range. Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 0.5mohm max. It has the maximum seated height of 0.205" (5.20mm). In addition, it is reach unaffected. The product has a 310 nh inductance value. The product's diameters include 0.720" l x 0.354" w (18.29mm x 9.00mm). Additionally, the product's output is 40 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product pa1312nl, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Location 14/Jan/2023(PCN Assembly/Origin)
pdf icon
PA131xNL(Datasheets)
pdf icon
Laser Marking Process 03/Dec/2013(PCN Design/Specification)
pdf icon
Pulse Larson REACH(Environmental Information)
