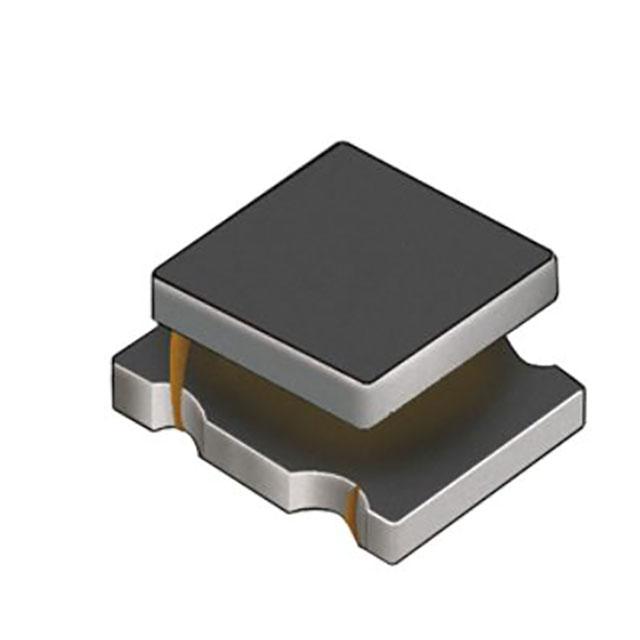

Murata Electronics LQH32PZ6R8NNCL

LQH32PZ6R8NNCL Murata Electronics
Murata Electronics

Product Information

Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
1 MHz
Operating Temperature:
-40°C ~ 85°C
Package / Case:
1210 (3225 Metric)
Tolerance:
±30%
Shielding:
Shielded
DC Resistance (DCR):
264mOhm Max
Height - Seated (Max):
0.067" (1.70mm)
Type:
Wirewound
REACH Status:
REACH Unaffected
edacadModel:
LQH32PZ6R8NNCL Models
Inductance:
6.8 µH
edacadModelUrl:
/en/models/10696768
Package:
Tape & Reel (TR)
Size / Dimension:
0.126" L x 0.098" W (3.20mm x 2.50mm)
Current - Saturation (Isat):
1.3A
Material - Core:
Ferrite
Current Rating (Amps):
1.1 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
40MHz
Features:
-
Mounting Type:
Surface Mount
Series:
LQH3
Supplier Device Package:
1210
Q @ Freq:
-
Base Product Number:
LQH32PZ
ECCN:
EAR99
Checking for live stock

This is manufactured by Murata Electronics. The manufacturer part number is LQH32PZ6R8NNCL. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 1 mhz is its inductance frequency value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 1210 (3225 metric). It features ±30% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 264mohm max. It has the maximum seated height of 0.067" (1.70mm). It comes in wirewound configuration. In addition, it is reach unaffected. The product has a 6.8 µh inductance value. It is shipped in tape & reel (tr) package . The product's diameters include 0.126" l x 0.098" w (3.20mm x 2.50mm). It has a 1.3a saturation current. It is made from durable ferrite. Additionally, the product's output is 1.1 a. Its typical moisture sensitivity level is 1 (unlimited). 40mhz is the self-resonant frequency of the product. The product is available in surface mount configuration. The product lqh3, is a highly preferred choice for users. 1210 is the supplier device package value. Moreover, it corresponds to lqh32pz, a base product number of the product. The product is designated with the ear99 code number.
