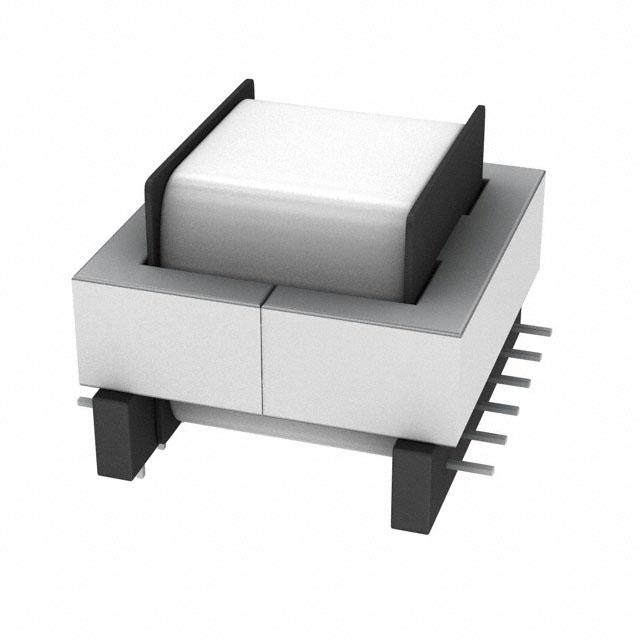

Eaton - Electronics Division CTX08-13679

CTX08-13679 Eaton - Electronics Division
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
Current - Saturation (Isat):
-
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-20°C ~ 105°C
Package / Case:
Radial, 10 Leads
Tolerance:
±3%
Shielding:
Unshielded
DC Resistance (DCR):
67mOhm Max
Height - Seated (Max):
1.530" (38.86mm)
Type:
Toroidal
Inductance:
1.2 mH
Size / Dimension:
2.020" L x 1.900" W (51.31mm x 48.26mm)
Material - Core:
Ferrite
Current Rating (Amps):
4.7 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Mounting Type:
Through Hole
Series:
PFC
Supplier Device Package:
-
Packaging:
Bulk
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX08-13679. It is assigned with possible HTSUS value of 8504.50.4000. 100 khz is its inductance frequency value. The product has -20°c ~ 105°c operating temperature range. Moreover, the product comes in radial, 10 leads. It features ±3% of tolerance value. Furthermore, the product is shielded with unshielded. It allows DC resistance of 67mohm max. It has the maximum seated height of 1.530" (38.86mm). It comes in toroidal configuration. The product has a 1.2 mh inductance value. The product's diameters include 2.020" l x 1.900" w (51.31mm x 48.26mm). It is made from durable ferrite. Additionally, the product's output is 4.7 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product pfc, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev EOL 1/Oct/2018(PCN Obsolescence/ EOL)
pdf icon
CTX08-13679(Datasheets)
pdf icon
PFC Appl Notes(Application Notes)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)

Reviews

  • Be the first to review.

Enrgtech, with headquarter in Bradford, UK, is recognized as a leading innovator and distributor of electronic components, including Fixed Inductors with vast collections of different Eaton - Electronics Division CTX08-13679 worldwide. We offer the latest Fixed Inductors from the branded manufacturers Eaton - Electronics Division, which is a two-terminal component Eaton - Electronics Division CTX08-13679, also known as the coil, choke, or reactor, capable of storing energy in the magnetic field by flowing electric current through it. The collection in Fixed Inductors contains various products like Eaton - Electronics Division CTX08-13679 with CTX08-13679, which offers the advantages of small size, lightweight, stable structure, convenient use, and installation. Furthermore, these Fixed Inductors are comprised of different types of products (such as Eaton - Electronics Division CTX08-13679) designed for circuits such as filtering, oscillation, trapping, and delay.

Get the latest and fault-tolerant Fixed Inductors with varieties of Eaton - Electronics Division CTX08-13679 by visiting our stock collection pages to get the products from the comfort of your homes. Customers can get exclusive offers by ordering different varieties of Fixed Inductors based on various Eaton - Electronics Division CTX08-13679 and other products. We ensure the delivery of Eaton - Electronics Division CTX08-13679 in the exact condition, and customers can order Fixed Inductors based on their required applications. Access the details of the order(s) by tracking the ET17530073 of the product. For further queries about Eaton - Electronics Division CTX08-13679 shipment, visit our website and email us at sales@enrgtech.co.uk or connect with our customer support team by calling at +44 (0) 3303 800 157.
