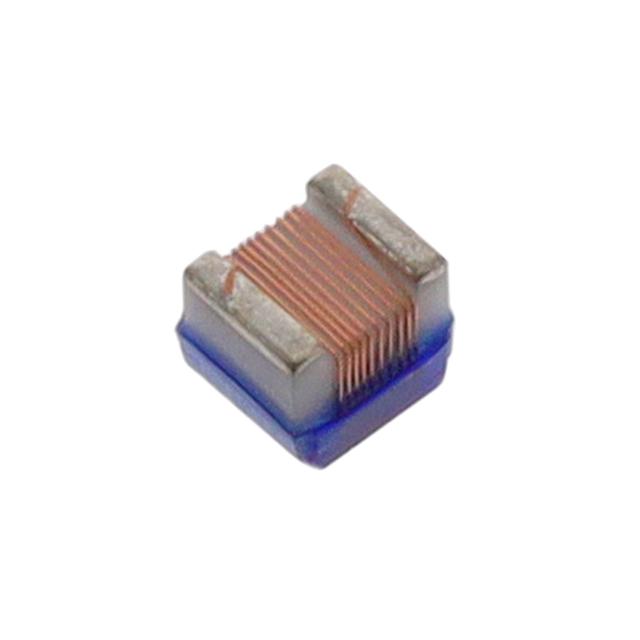

TE Connectivity Passive Product 36502CR18JTDG

36502CR18JTDG TE Connectivity Passive Product
TE Connectivity Passive Product

Product Information

Ratings:
AEC-Q200
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
25 MHz
Operating Temperature:
-40°C ~ 125°C
Package / Case:
1008 (2520 Metric)
Tolerance:
±5%
Shielding:
Unshielded
DC Resistance (DCR):
770mOhm Max
Height - Seated (Max):
0.083" (2.10mm)
Type:
Wirewound
REACH Status:
Vendor Undefined
edacadModel:
36502CR18JTDG Models
Inductance:
180 nH
edacadModelUrl:
/en/models/5399643
Size / Dimension:
0.115" L x 0.110" W (2.92mm x 2.79mm)
Current - Saturation (Isat):
-
standardLeadTime:
15 Weeks
Material - Core:
Ceramic
Current Rating (Amps):
620 mA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
750MHz
Features:
-
Mounting Type:
Surface Mount
Series:
3650, Sigma Inductors
Supplier Device Package:
1008 (2520 Metric)
Packaging:
Tape & Reel (TR)
Q @ Freq:
45 @ 100MHz
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Passive Product. The manufacturer part number is 36502CR18JTDG. It is rated with aec-q200. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 25 mhz is its inductance frequency value. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in 1008 (2520 metric). It features ±5% of tolerance value. Furthermore, the product is shielded with unshielded. It allows DC resistance of 770mohm max. It has the maximum seated height of 0.083" (2.10mm). It comes in wirewound configuration. In addition, it is vendor undefined. The product has a 180 nh inductance value. The product's diameters include 0.115" l x 0.110" w (2.92mm x 2.79mm). It has a long 15 weeks standard lead time. It is made from durable ceramic. Additionally, the product's output is 620 ma. Its typical moisture sensitivity level is 1 (unlimited). 750mhz is the self-resonant frequency of the product. The product is available in surface mount configuration. The product 3650, sigma inductors, is a highly preferred choice for users. 1008 (2520 metric) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a typical frequency of 45 @ 100mhz. The product is designated with the ear99 code number.
