Molex 5016282191

5016282191 Molex
5016282191
Molex

Product Information

Detailed Description:

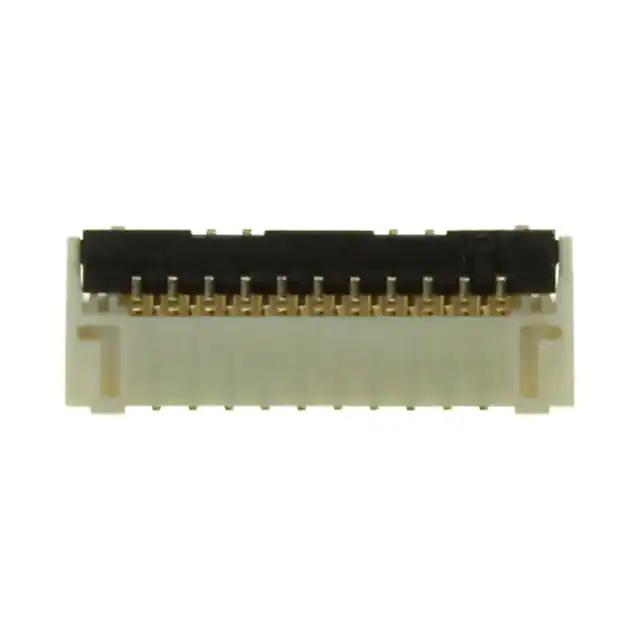

21 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-25°C ~ 85°C
Height Above Board:
0.035" (0.88mm)
Number of Positions:
21
Base Part Number:
501628
Locking Feature:
Flip Lock
Flat Flex Type:
FPC
Material Flammability Rating:
UL94 V-0
Manufacturer:
Molex
Voltage Rating:
50V
Contact Finish:
Gold
Termination:
Solder
Mating Cycles:
10
Current Rating (Amps):
0.2A
Connector/Contact Type:
Contacts, Bottom
Mounting Type:
Surface Mount, Right Angle
Series:
Easy-On 501628
FFC, FCB Thickness:
0.20mm
Packaging:
Cut Tape (CT)
Customer Reference:
Pitch:
0.012" (0.30mm)
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Cable End Type:
Tabbed
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5016282191. It features 21 position fpc connector contacts, bottom 0.012" (0.30mm) surface mount, right angle. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -25°c ~ 85°c operating temperature range. It is 0.035" (0.88mm) high above board. The product carries possible position value of 21. Base Part Number: 501628. The product has a locking feature of flip lock. It is a flat flex fpc type. It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder termination style. It provides best efficiency with mating cycles of 10. Additionally, the product's output is 0.2a. It has built-in connector or contact of contacts, bottom. The product is available in surface mount, right angle configuration. The product easy-on 501628, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.20mm. In addition, cut tape (ct) is the available packaging type of the product. Moreover, the product is 0.012" (0.30mm). The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. The cable end is a type of tabbed end. The product is made from sturdy copper alloy materials.
