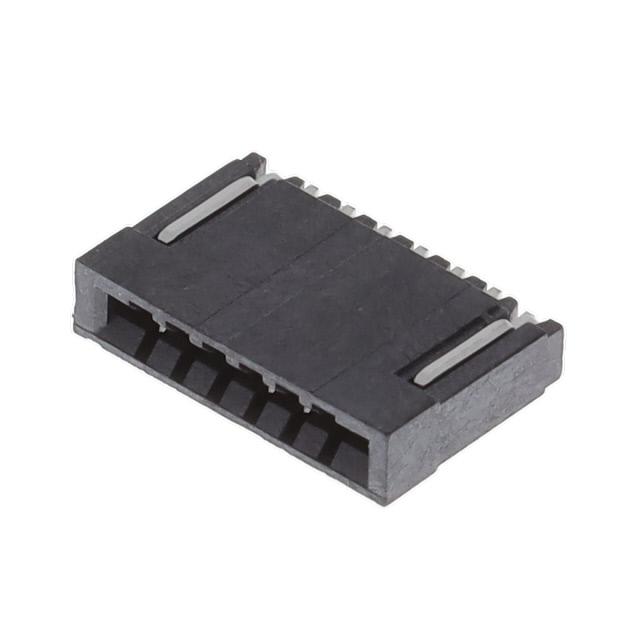

Amphenol ICC (FCI) HFW6R-1STE1H1LF

HFW6R-1STE1H1LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Housing Material:
Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature:
-55°C ~ 105°C
Height Above Board:
0.075" (1.90mm)
Actuator Color:
-
Contact Finish Thickness:
-
standardLeadTime:
11 Weeks
Locking Feature:
-
Voltage Rating:
100V
REACH Status:
REACH Affected
Number of Positions:
6
Flat Flex Type:
FFC, FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
Package:
Tape & Reel (TR)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
30
Current Rating (Amps):
1A
Connector/Contact Type:
Contacts, Bottom
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
HFW-R
FFC, FCB Thickness:
0.30mm
Base Product Number:
HFW6R
Pitch:
0.039" (1.00mm)
Contact Material:
Phosphor Bronze
Actuator Material:
-
Cable End Type:
Straight or Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is HFW6R-1STE1H1LF. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs compliant. The product also features robust liquid crystal polymer (lcp), halogen free housing material. The product has -55°c ~ 105°c operating temperature range. It is 0.075" (1.90mm) high above board. It has a long 11 weeks standard lead time. Moreover, the product has a nominal 100v voltage rating. In addition, it is reach affected. The product carries possible position value of 6. It is a flat flex ffc, fpc type. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 30. Additionally, the product's output is 1a. It has built-in connector or contact of contacts, bottom. The product is available in surface mount, right angle configuration. The product hfw-r, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to hfw6r, a base product number of the product. Moreover, the product is 0.039" (1.00mm). The product is made from sturdy phosphor bronze materials. The cable end is a type of straight or tapered end. The product is designated with the ear99 code number.

pdf icon
10149903(Datasheets)
pdf icon
SC-HFWR02 Spec(Datasheets)
pdf icon
HFW-R,HFW-S Pkg 04/Sep/2023(PCN Packaging)
