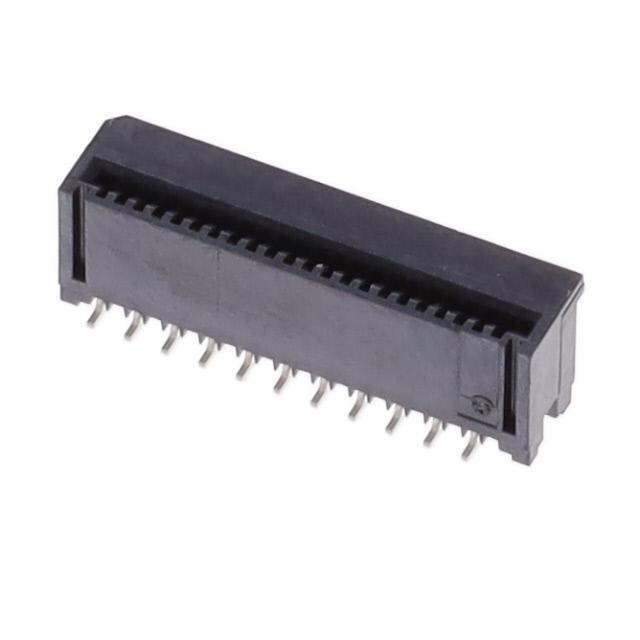

Molex 0781272210

0781272210 Molex
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.161" (4.10mm)
Actuator Color:
-
Contact Finish Thickness:
39.4µin (1.00µm)
standardLeadTime:
11 Weeks
Locking Feature:
-
Voltage Rating:
50V
Number of Positions:
22
edacadModel:
0781272210 Models
Flat Flex Type:
FFC, FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10064185
Package:
Tape & Reel (TR)
Contact Finish:
Tin Bismuth
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
10
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Vertical - 1 Sided
Features:
-
Mounting Type:
Surface Mount
Series:
Easy-On 78127
FFC, FCB Thickness:
0.30mm
Base Product Number:
078127
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
-
Cable End Type:
Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0781272210. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.161" (4.10mm) high above board. It has 39.4µin (1.00µm) of contact finishing thickness. It has a long 11 weeks standard lead time. Moreover, the product has a nominal 50v voltage rating. The product carries possible position value of 22. It is a flat flex ffc, fpc type. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent tin bismuth contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 10. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, vertical - 1 sided. The product is available in surface mount configuration. The product easy-on 78127, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to 078127, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The cable end is a type of tapered end. The product is designated with the ear99 code number.
