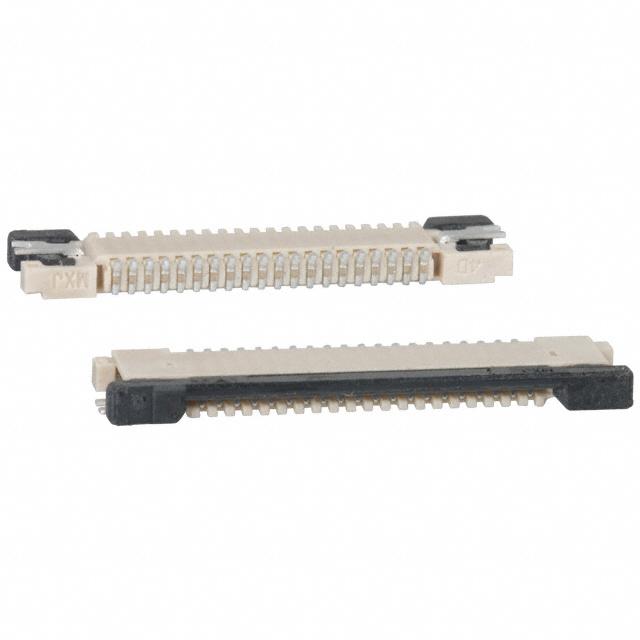

Molex 0545482070

0545482070 Molex
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-20°C ~ 85°C
Height Above Board:
0.047" (1.20mm)
Actuator Color:
-
Contact Finish Thickness:
8.00µin (0.203µm)
Number of Positions:
20
Locking Feature:
Flip Lock
title:
0545482070
REACH Status:
REACH Unaffected
edacadModel:
0545482070 Models
Flat Flex Type:
FFC, FPC
Housing Color:
-
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1060288
Manufacturer:
Molex
Voltage Rating:
50V
Contact Finish:
Tin Bismuth
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
-
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
Easy-On 54548
FFC, FCB Thickness:
0.30mm
Packaging:
Tape & Reel (TR)
Base Product Number:
054548
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyphenylene Sulfide (PPS)
Cable End Type:
Straight, Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0545482070. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp) housing material. The product has -20°c ~ 85°c operating temperature range. It is 0.047" (1.20mm) high above board. It has 8.00µin (0.203µm) of contact finishing thickness. The product carries possible position value of 20. The product has a locking feature of flip lock. In addition, it is reach unaffected. It is a flat flex ffc, fpc type. It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent tin bismuth contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in surface mount, right angle configuration. The product easy-on 54548, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to 054548, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyphenylene sulfide (pps) material. The cable end is a type of straight, tapered end. The product is designated with the ear99 code number.

pdf icon
0545482070 RoHS Cert of Compliance(Environmental Information)
pdf icon
54548 Series 30/Mar/2015(PCN Obsolescence/ EOL)
pdf icon
54548-2070(Datasheets)
