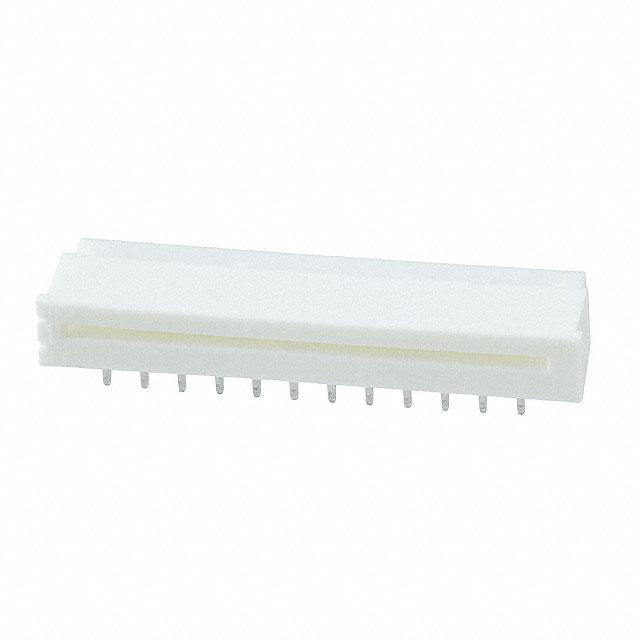

Molex 0039532244

0039532244 Molex
0039532244
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Polybutylene Terephthalate (PBT), Polyester
Operating Temperature:
-20°C ~ 80°C
Height Above Board:
0.213" (5.40mm)
Number of Positions:
24
Locking Feature:
Slide Lock
REACH Status:
REACH Unaffected
edacadModel:
0039532244 Models
Flat Flex Type:
FFC, FPC
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3160275
Manufacturer:
Molex
Voltage Rating:
200V
Contact Finish:
Tin Bismuth
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
20 Weeks
Connector/Contact Type:
Contacts, Top
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Through Hole, Right Angle
Series:
5597
FFC, FCB Thickness:
0.30mm
Packaging:
Tray
Base Product Number:
003953
Pitch:
0.049" (1.25mm)
ECCN:
EAR99
Actuator Material:
Polybutylene Terephthalate (PBT), Polyester
Cable End Type:
Straight
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0039532244. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust polybutylene terephthalate (pbt), polyester housing material. The product has -20°c ~ 80°c operating temperature range. It is 0.213" (5.40mm) high above board. The product carries possible position value of 24. The product has a locking feature of slide lock. In addition, it is reach unaffected. It is a flat flex ffc, fpc type. It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. Moreover, the product has a nominal 200v voltage rating. Furthermore, the product is galvanized with excellent tin bismuth contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 20 weeks standard lead time. It has built-in connector or contact of contacts, top. The splendid features of the product include zero insertion force (zif). The product is available in through hole, right angle configuration. The product 5597, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. In addition, tray is the available packaging type of the product. Moreover, it corresponds to 003953, a base product number of the product. Moreover, the product is 0.049" (1.25mm). The product is designated with the ear99 code number. The actuator is designed from sturdy polybutylene terephthalate (pbt), polyester material. The cable end is a type of straight end. The product is made from sturdy phosphor bronze materials.

pdf icon
39532244 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Location 02/Oct/2023(PCN Assembly/Origin)
pdf icon
5571,5597 Series Molding Resin 09/Dec/2014(PCN Design/Specification)
pdf icon
0039532244(Datasheets)
pdf icon
39-53-2244.pdf(3D Drawings)
pdf icon
0039532244(Product Drawings)
