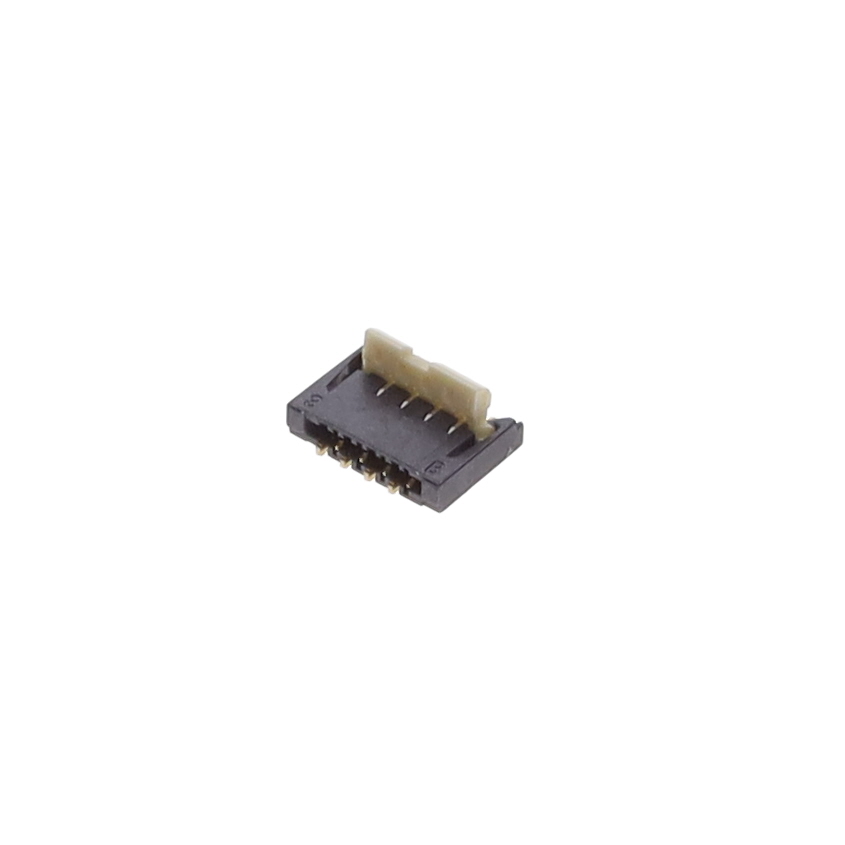

Panasonic Electric Works AYF330835A

AYF330835A Panasonic Electric Works
Panasonic Electric Works

Product Information

HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.035" (0.88mm)
Actuator Color:
-
Contact Finish Thickness:
Flash
standardLeadTime:
17 Weeks
Locking Feature:
Flip Lock, Backlock
REACH Status:
REACH Unaffected
Number of Positions:
8
Flat Flex Type:
FPC
Housing Color:
-
Material Flammability Rating:
UL94 V-0
Manufacturer:
Panasonic Electric Works
Voltage Rating:
50V
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.2A per Contact
Connector/Contact Type:
Contacts, Top and Bottom
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Y3B
FFC, FCB Thickness:
0.20mm
Packaging:
Strip
Base Product Number:
AYF330835
Pitch:
0.012" (0.30mm)
Contact Material:
Copper Alloy
Actuator Material:
Liquid Crystal Polymer (LCP)
Cable End Type:
Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is AYF330835A. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs compliant. The product also features robust liquid crystal polymer (lcp) housing material. The product has -55°c ~ 85°c operating temperature range. It is 0.035" (0.88mm) high above board. It has flash of contact finishing thickness. It has a long 17 weeks standard lead time. The product has a locking feature of flip lock, backlock. In addition, it is reach unaffected. The product carries possible position value of 8. It is a flat flex fpc type. It carries ul94 v-0 of material flammability rating. The panasonic electric works's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.2a per contact. It has built-in connector or contact of contacts, top and bottom. The product is available in surface mount, right angle configuration. The product y3b, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.20mm. In addition, strip is the available packaging type of the product. Moreover, it corresponds to ayf330835, a base product number of the product. Moreover, the product is 0.012" (0.30mm). The product is made from sturdy copper alloy materials. The actuator is designed from sturdy liquid crystal polymer (lcp) material. The cable end is a type of tapered end. The product is designated with the ear99 code number.
