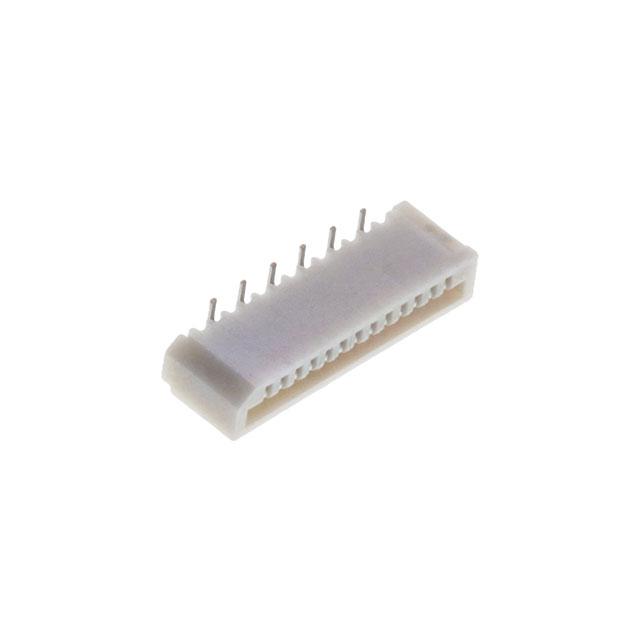

Molex 0528081370

0528081370 Molex
0528081370
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyphenylene Sulfide (PPS)
Operating Temperature:
-20°C ~ 85°C
Height Above Board:
0.199" (5.05mm)
Actuator Color:
-
Contact Finish Thickness:
-
standardLeadTime:
15 Weeks
Locking Feature:
-
Voltage Rating:
125V
REACH Status:
REACH Unaffected
Number of Positions:
13
edacadModel:
0528081370 Models
Flat Flex Type:
FPC
Housing Color:
-
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3263039
Package:
Tape & Reel (TR)
Contact Finish:
Tin Bismuth
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
10
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Vertical - 1 Sided
Features:
-
Mounting Type:
Surface Mount
Series:
Easy-On 52808
FFC, FCB Thickness:
0.30mm
Base Product Number:
052808
Pitch:
0.039" (1.00mm)
Contact Material:
Phosphor Bronze
Actuator Material:
-
Cable End Type:
Straight
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0528081370. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust polyphenylene sulfide (pps) housing material. The product has -20°c ~ 85°c operating temperature range. It is 0.199" (5.05mm) high above board. It has a long 15 weeks standard lead time. Moreover, the product has a nominal 125v voltage rating. In addition, it is reach unaffected. The product carries possible position value of 13. It is a flat flex fpc type. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent tin bismuth contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 10. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, vertical - 1 sided. The product is available in surface mount configuration. The product easy-on 52808, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to 052808, a base product number of the product. Moreover, the product is 0.039" (1.00mm). The product is made from sturdy phosphor bronze materials. The cable end is a type of straight end. The product is designated with the ear99 code number.

pdf icon
528081370 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Resin Source 10/Dec/2014(PCN Design/Specification)
pdf icon
528081370(Datasheets)
pdf icon
52808-1370.pdf(3D Drawings)
