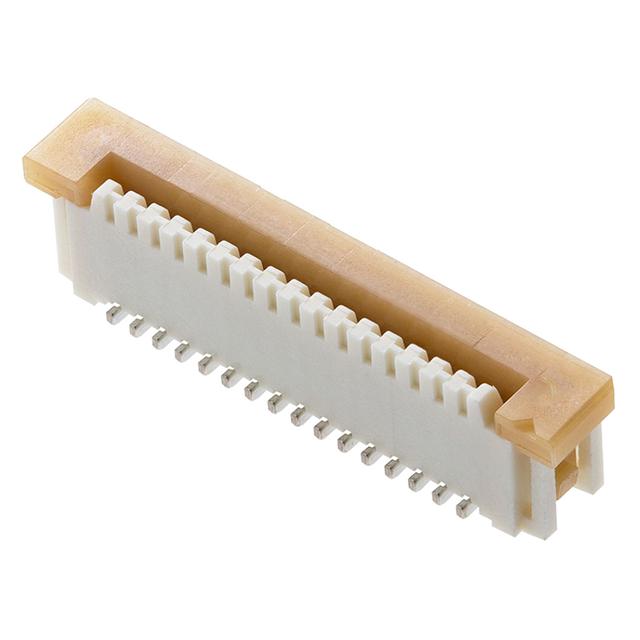

Molex 0526100834

0526100834 Molex
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA), Nylon, Glass Filled
Operating Temperature:
-
Height Above Board:
0.226" (5.74mm)
Actuator Color:
Brown
Contact Finish Thickness:
39.4µin (1.00µm)
Number of Positions:
8
Locking Feature:
Slide Lock
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0526100834 Models
Flat Flex Type:
FPC
Housing Color:
White
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4444584
Package:
Tape & Reel (TR)
Contact Finish:
Tin Bismuth
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
-
Current Rating (Amps):
-
Connector/Contact Type:
Contacts, Vertical - 1 Sided
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount
Series:
Easy-On 52610
FFC, FCB Thickness:
0.30mm
Base Product Number:
052610
Pitch:
0.039" (1.00mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type:
Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0526100834. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust polyamide (pa), nylon, glass filled housing material. It is 0.226" (5.74mm) high above board. The actuator has a classic brown colour. It has 39.4µin (1.00µm) of contact finishing thickness. The product carries possible position value of 8. The product has a locking feature of slide lock. In addition, it is reach unaffected. It is a flat flex fpc type. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent tin bismuth contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has built-in connector or contact of contacts, vertical - 1 sided. The splendid features of the product include zero insertion force (zif). The product is available in surface mount configuration. The product easy-on 52610, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to 052610, a base product number of the product. Moreover, the product is 0.039" (1.00mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyphenylene sulfide (pps), glass filled material. The cable end is a type of tapered end. The product is designated with the ear99 code number.

pdf icon
Mult Devs Location 15/Aug/2022(PCN Assembly/Origin)
pdf icon
Mult Devs 16/Mar/2023(PCN Obsolescence/ EOL)
pdf icon
Multiple Devices 21/Jun/2013(PCN Obsolescence/ EOL)
pdf icon
0526100834.pdf(3D Drawings)
pdf icon
052610xx34 Drawing(Product Drawings)
