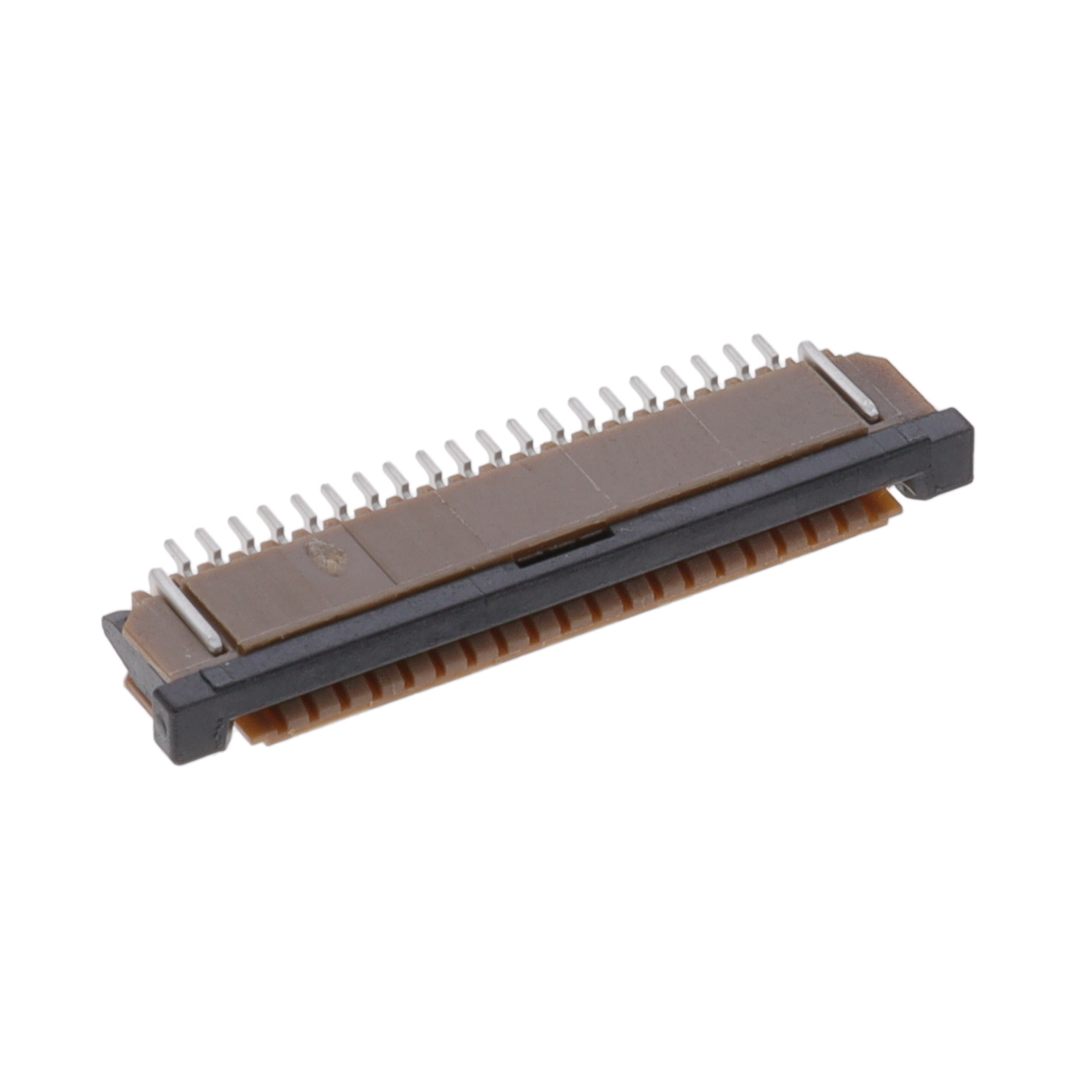

Amphenol ICC (FCI) SFW20R-2STE1LF

SFW20R-2STE1LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Housing Material:
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature:
-55°C ~ 105°C
Height Above Board:
0.106" (2.70mm)
Actuator Color:
Brown
Contact Finish Thickness:
-
standardLeadTime:
12 Weeks
Locking Feature:
Slide Lock
REACH Status:
REACH Affected
Number of Positions:
20
edacadModel:
SFW20R-2STE1LF Models
Flat Flex Type:
FFC, FPC
Housing Color:
Brown
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1002229
Manufacturer:
Amphenol ICC (FCI)
Voltage Rating:
100V
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
1A
Connector/Contact Type:
Contacts, Top
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
SFW-R
FFC, FCB Thickness:
0.30mm, 0.33mm
Packaging:
Tape & Reel (TR)
Base Product Number:
SFW20R
Pitch:
0.039" (1.00mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type:
Notched
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is SFW20R-2STE1LF. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs compliant. The product also features robust polyphenylene sulfide (pps), glass filled housing material. The product has -55°c ~ 105°c operating temperature range. It is 0.106" (2.70mm) high above board. The actuator has a classic brown colour. It has a long 12 weeks standard lead time. The product has a locking feature of slide lock. In addition, it is reach affected. The product carries possible position value of 20. It is a flat flex ffc, fpc type. It has an integral brown housing colour. It carries ul94 v-0 of material flammability rating. The amphenol icc (fci)'s product offers user-desired applications. Moreover, the product has a nominal 100v voltage rating. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 1a. It has built-in connector or contact of contacts, top. The splendid features of the product include zero insertion force (zif). The product is available in surface mount, right angle configuration. The product sfw-r, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm, 0.33mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to sfw20r, a base product number of the product. Moreover, the product is 0.039" (1.00mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyphenylene sulfide (pps), glass filled material. The cable end is a type of notched end. The product is designated with the ear99 code number.

pdf icon
FFC/FPC series 20/Jul/2011(PCN Assembly/Origin)
pdf icon
flexconnectors 100mm sfw r Datasheet(Datasheets)
pdf icon
gs-20-129Other Related Documents(Application Notes)
pdf icon
Multiple Devices Packaging Material 31/Jan/2019(PCN Packaging)
pdf icon
Multiple Devices Package Material Revision 25/Feb/2019(PCN Packaging)
pdf icon
SFW10R-1STE1LF(Design Resources)
pdf icon
SFW8R-1STE5LF(Other Related Documents)
pdf icon
SFW4R-2STAE1LF(Other Related Documents)
pdf icon
fci basics ffc fpc productpresentation Other Related Document(Other Related Documents)
