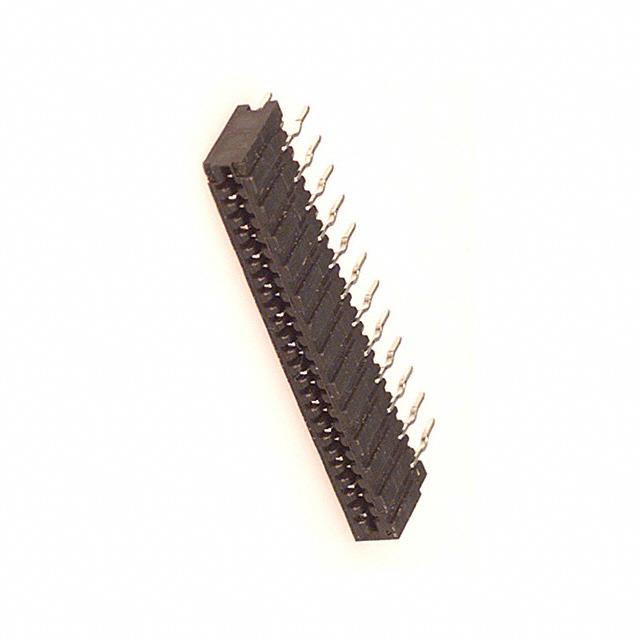

Hirose Electric Co Ltd FH21-24S-1DSA

FH21-24S-1DSA Hirose Electric Co Ltd
Hirose Electric Co Ltd

Product Information

HTSUS:
8536.69.4051
RoHS Status:
RoHS non-compliant
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-30°C ~ 70°C
Height Above Board:
0.228" (5.80mm)
Actuator Color:
-
Contact Finish Thickness:
-
Number of Positions:
24
Locking Feature:
-
Voltage Rating:
50V
REACH Status:
REACH Unaffected
edacadModel:
FH21-24S-1DSA Models
Flat Flex Type:
FFC, FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/200956
Package:
Bulk
Contact Finish:
Solder Plating
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Kinked Pin
Mating Cycles:
10
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Vertical - 2 Sided
Features:
Low Insertion Force (LIF)
Mounting Type:
Through Hole
Series:
FH21
FFC, FCB Thickness:
0.30mm
Pitch:
0.039" (1.00mm)
Contact Material:
Phosphor Bronze
Actuator Material:
-
Cable End Type:
Straight
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is FH21-24S-1DSA. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs non-compliant. The product also features robust polybutylene terephthalate (pbt) housing material. The product has -30°c ~ 70°c operating temperature range. It is 0.228" (5.80mm) high above board. The product carries possible position value of 24. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. It is a flat flex ffc, fpc type. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Furthermore, the product is galvanized with excellent solder plating contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features kinked pin termination style. It provides best efficiency with mating cycles of 10. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, vertical - 2 sided. The splendid features of the product include low insertion force (lif). The product is available in through hole configuration. The product fh21, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, the product is 0.039" (1.00mm). The product is made from sturdy phosphor bronze materials. The cable end is a type of straight end. The product is designated with the ear99 code number.
