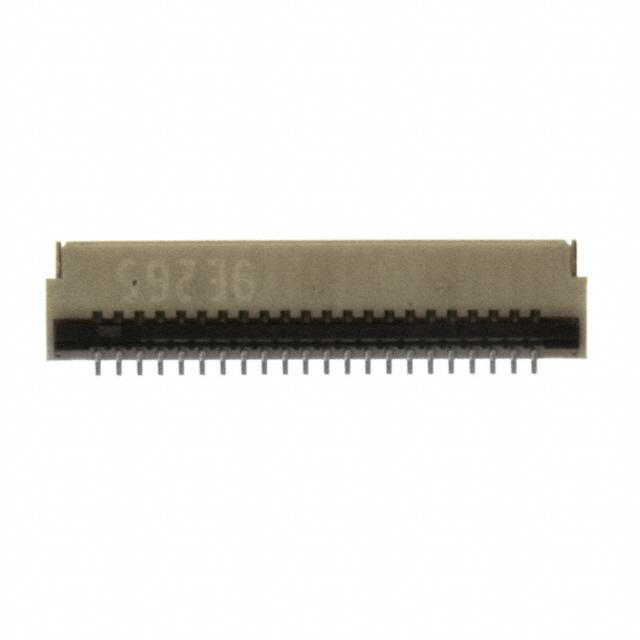

Hirose Electric Co Ltd FH34S-22S-0.5SH(99)

FH34S-22S-0-5SH-99- Hirose Electric Co Ltd FH34S-22S-0.5SH(99)
Hirose Electric Co Ltd

Product Information

HTSUS:
8536.69.4051
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.039" (1.00mm)
Actuator Color:
Black
Contact Finish Thickness:
-
Number of Positions:
22
Locking Feature:
Rotary Lock, Backlock
Voltage Rating:
50V
Flat Flex Type:
FFC, FPC
Housing Color:
Beige
Material Flammability Rating:
UL94 V-0
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Top
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
FH34S
FFC, FCB Thickness:
0.30mm
Pitch:
0.020" (0.50mm)
ECCN:
EAR99
Actuator Material:
Polyamide (PA), Nylon
Cable End Type:
Tapered
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is FH34S-22S-0.5SH(99). It is assigned with possible HTSUS value of 8536.69.4051. The product also features robust liquid crystal polymer (lcp) housing material. The product has -55°c ~ 85°c operating temperature range. It is 0.039" (1.00mm) high above board. The actuator has a classic black colour. The product carries possible position value of 22. The product has a locking feature of rotary lock, backlock. Moreover, the product has a nominal 50v voltage rating. It is a flat flex ffc, fpc type. It has an integral beige housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, top. The splendid features of the product include zero insertion force (zif). The product is available in surface mount, right angle configuration. The product fh34s, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, the product is 0.020" (0.50mm). The product is designated with the ear99 code number. The actuator is designed from sturdy polyamide (pa), nylon material. The cable end is a type of tapered end. The product is made from sturdy phosphor bronze materials.

pdf icon
Multiple Series Nov/2016(PCN Obsolescence/ EOL)
pdf icon
FH34(S) Series Datasheet(Datasheets)
