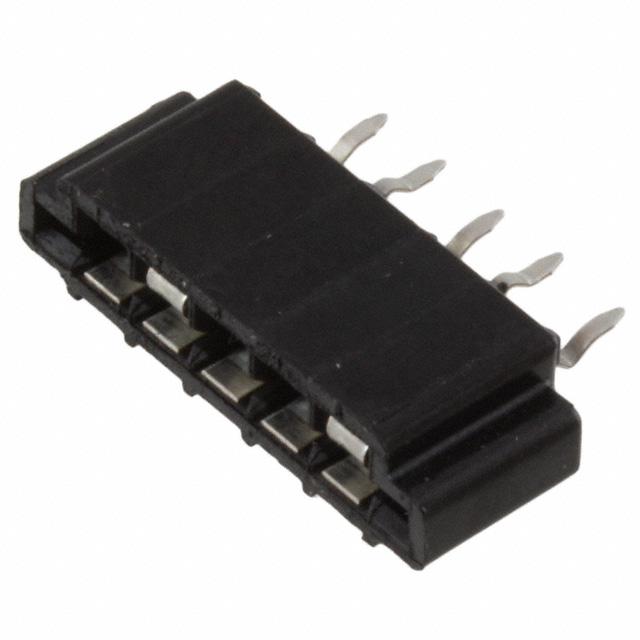

TE Connectivity AMP Connectors 5-520315-5

5-520315-5 TE Connectivity AMP Connectors
5-520315-5
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Housing Material:
Polyester Thermoplastic, Glass Filled
Operating Temperature:
-55°C ~ 105°C
Height Above Board:
0.273" (6.93mm)
Actuator Color:
-
Contact Finish Thickness:
-
standardLeadTime:
6 Weeks
Locking Feature:
-
Voltage Rating:
250V
REACH Status:
Vendor Undefined
Number of Positions:
5
edacadModel:
5-520315-5 Models
Flat Flex Type:
FFC, FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1131695
Package:
Bulk
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Kinked Pin
Mating Cycles:
25
Current Rating (Amps):
1A
Connector/Contact Type:
Contacts, Vertical - 1 Sided
Features:
-
Mounting Type:
Through Hole
Series:
Triomate
FFC, FCB Thickness:
0.13mm ~ 0.38mm
Base Product Number:
520315
Pitch:
0.100" (2.54mm)
Contact Material:
Phosphor Bronze
Actuator Material:
-
Cable End Type:
Straight
ECCN:
EAR99
Checking for live stock

The 5-520315-5 from TE Connectivity AMP Connectors is a high-quality and reliable connector assembly designed for various applications. This connector assembly features five positions for secure and efficient wire-to-board connections, ensuring reliable power transmission and data transfer. With a voltage rating of 250V, it is suitable for demanding electrical circuits. The connector's robust construction and durable materials guarantee long-lasting performance and resistance to harsh environments. Its compact design allows for easy installation and integration into different electronic systems.

Distinct Features of the Product:

  • Five positions for versatile wire-to-board connections
  • High voltage rating of 250V for reliable power transmission
  • Durable construction and materials for long-lasting performance
  • Compact design for easy installation and integration.

Notable Benefits of 5-520315-5 TE Connectivity Connector Assembly:

  • Ensures secure and efficient electrical connections
  • Suitable for demanding applications requiring high-voltage
  • Resists harsh environments and provides reliable performance
  • Streamlines installation and reduces space requirements.

Typical Applications of 5-520315-5 Connector Assembly:

  • Automotive electronics
  • Industrial control systems
  • Telecommunications equipment
  • Medical devices
  • Consumer electronics.

pdf icon
Mult Devs - Mfg location chg 07/JUL/2021(PCN Assembly/Origin)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 5-520315-5 on website for other similar products.
We accept all major payment methods for all products including ET12174091. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 5-520315-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 5-520315-5. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 5-520315-5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12174091 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12174091.
Yes. We ship 5-520315-5 Internationally to many countries around the world.
