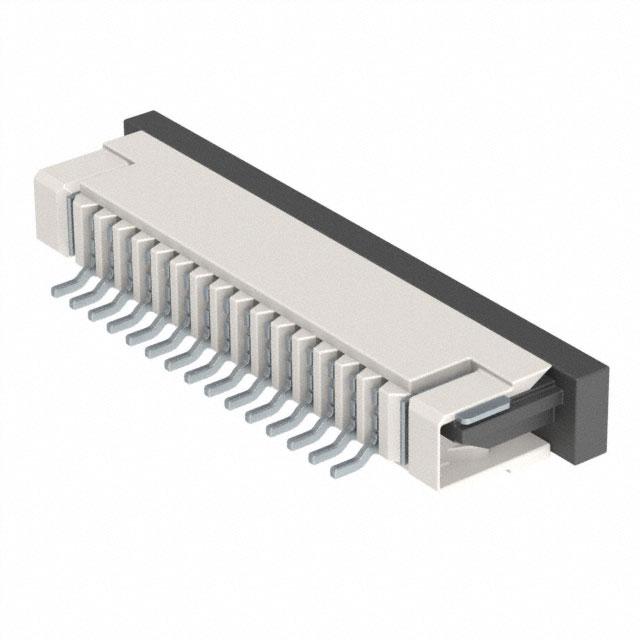

Samtec Inc. ZF1-15-02-T-WT-TR

ZF1-15-02-T-WT-TR Samtec Inc.
Samtec Inc.

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 105°C
Height Above Board:
0.118" (3.00mm)
Number of Positions:
15
Locking Feature:
Slide Lock
REACH Status:
REACH Unaffected
edacadModel:
ZF1-15-02-T-WT-TR Models
Flat Flex Type:
FFC
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/6614082
Manufacturer:
Samtec Inc.
Voltage Rating:
-
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
6 Weeks
Connector/Contact Type:
Contacts, Top
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
ZF1
FFC, FCB Thickness:
0.30mm
Packaging:
Tape & Reel (TR)
Base Product Number:
ZF1-15
Pitch:
0.039" (1.00mm)
ECCN:
EAR99
Actuator Material:
Polyphenylene Sulfide (PPS)
Cable End Type:
Straight
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is ZF1-15-02-T-WT-TR. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp) housing material. The product has -55°c ~ 105°c operating temperature range. It is 0.118" (3.00mm) high above board. The product carries possible position value of 15. The product has a locking feature of slide lock. In addition, it is reach unaffected. It is a flat flex ffc type. It carries ul94 v-2 of material flammability rating. The samtec inc.'s product offers user-desired applications. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 6 weeks standard lead time. It has built-in connector or contact of contacts, top. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in surface mount, right angle configuration. The product zf1, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to zf1-15, a base product number of the product. Moreover, the product is 0.039" (1.00mm). The product is designated with the ear99 code number. The actuator is designed from sturdy polyphenylene sulfide (pps) material. The cable end is a type of straight end. The product is made from sturdy phosphor bronze materials.

pdf icon
1.00 mm Zero Insertion Force Flat Flexible Cable Socket Strip(Datasheets)
pdf icon
1.00 mm Zero Insertion Force Flat Flexible Cable Socket Strip(Other Related Documents)
pdf icon
ZF1-xx-xx-xx-WT-xx Drawing(Product Drawings)
