Forward Voltage Vf:
0.89V
Width:
1.7 mm
Automotive Standard:
No
Transistor Configuration:
Isolated
Typical Gate Charge Qg @ Vgs:
1.1nC
Package Type:
SOT-23
Number of Elements per Chip:
2
Maximum Continuous Drain Current Id:
680mA
Product Type:
MOSFET
Maximum Operating Temperature:
-55°C
Maximum Drain Source Voltage Vds:
25V
Channel Type:
Type P, Type N
Length:
3mm
Standards/Approvals:
No
Pin Count:
6
Mount Type:
Surface
Maximum Power Dissipation Pd:
900mW
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
-8/8 V
Maximum Drain Source Resistance Rds:
1.1mΩ
Height:
1mm
Minimum Operating Temperature:
150°C
FET Feature:
Logic Level Gate
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
1.5V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)

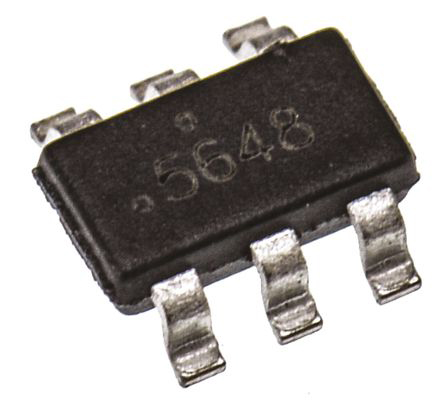

Package / Case:
SOT-23-6 Thin, TSOT-23-6
Rds On (Max) @ Id, Vgs:
450mOhm @ 500mA, 4.5V
Gate Charge (Qg) (Max) @ Vgs:
2.3nC @ 5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
FDC6321C Models
Current - Continuous Drain (Id) @ 25°C:
680mA, 460mA
edacadModelUrl:
/en/models/979789
Configuration:
N and P-Channel
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
25V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
50pF @ 10V
standardLeadTime:
27 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SuperSOT™-6
Power - Max:
700mW
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FDC6321
ECCN:
EAR99
