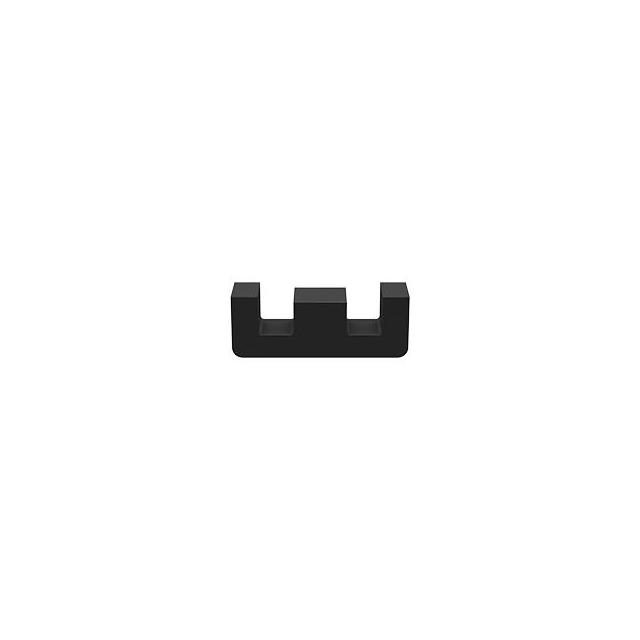

EPCOS - TDK Electronics B66393G0000X197

B66393G0000X197 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2300
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
0.185" (4.70mm)
Effective Permeability (µe):
1480.0
Tolerance:
±25%
Finish:
Uncoated
Effective Length (le) mm:
28.6
Effective Magnetic Volume (Ve) mm³:
549.0
title:
B66393G0000X197
Material:
N97
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B66393G0000X197 Models
edacadModelUrl:
/en/models/3914887
Core Type:
E
Manufacturer:
EPCOS - TDK Electronics
Minimum Core Cross Section (Amin) mm²:
17.6
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
0.630" (16.00mm)
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
1.49
Series:
E16/6/5
Effective Area (Ae) mm²:
19.2
Supplier Device Package:
E 16 x 6 x 5
Height:
0.228" (5.80mm)
Packaging:
Box
Inductance Factor (Al):
1.25 µH
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B66393G0000X197. The product features 2300 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 0.185" (4.70mm) wide. Features effective permeability of 1480.0. It features ±25% of tolerance value. A quality product with a nice uncoated finish. A 28.6 of effective length. It features 549.0 effective magnetic volume. The product is made from highly stable and reliable n97. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a e core. The epcos - tdk electronics's product offers user-desired applications. Its minimum core cross-section is 17.6. Its typical moisture sensitivity level is not applicable. Its accurate length is 0.630" (16.00mm). The product e16/6/5, is a highly preferred choice for users. Features 19.2 effective area. e 16 x 6 x 5 is the supplier device package value. In addition, the height is 0.228" (5.80mm). In addition, box is the available packaging type of the product. It carries 1.25 µh of inductance factor. The product is designated with the ear99 code number.
