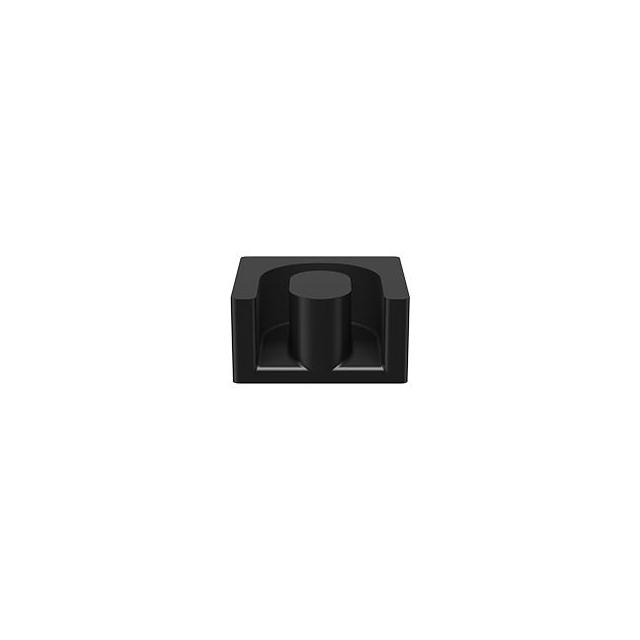

EPCOS - TDK Electronics B65857C0000Y038

B65857C0000Y038 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2300
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
0.354" (9.00mm)
Effective Permeability (µe):
6910
Tolerance:
-30%, +40%
Minimum Core Cross Section (Amin) mm²:
13.9
Finish:
Uncoated
Effective Length (le) mm:
19
Effective Magnetic Volume (Ve) mm³:
333
Material:
T38
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B65857C0000Y038 Models
edacadModelUrl:
/en/models/3914426
Core Type:
EPX
Inductance Factor (Al):
8 µH
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
0.370" (9.40mm)
standardLeadTime:
20 Weeks
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
1.09
Series:
EPX9/9
Effective Area (Ae) mm²:
17.5
Supplier Device Package:
EPX 9 x 9
Height:
0.187" (4.75mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65857C0000Y038. The product features 2300 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 0.354" (9.00mm) wide. Features effective permeability of 6910. It features -30%, +40% of tolerance value. Its minimum core cross-section is 13.9. A quality product with a nice uncoated finish. A 19 of effective length. It features 333 effective magnetic volume. The product is made from highly stable and reliable t38. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a epx core. It carries 8 µh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 0.370" (9.40mm). It has a long 20 weeks standard lead time. The product epx9/9, is a highly preferred choice for users. Features 17.5 effective area. epx 9 x 9 is the supplier device package value. In addition, the height is 0.187" (4.75mm). The product is designated with the ear99 code number.
