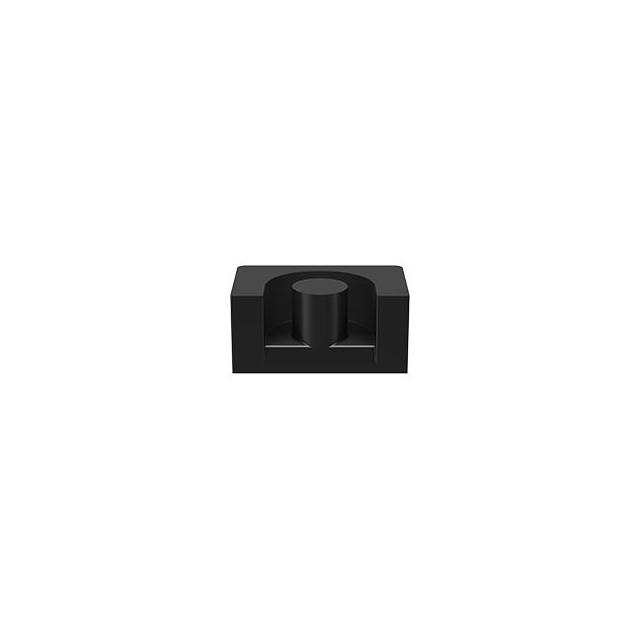

EPCOS - TDK Electronics B65847A0000Y038

B65847A0000Y038 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2300
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
0.602" (15.30mm)
Effective Permeability (µe):
7630
Tolerance:
-30%, +40%
Minimum Core Cross Section (Amin) mm²:
60
Finish:
Uncoated
Effective Length (le) mm:
40
Effective Magnetic Volume (Ve) mm³:
3120
Material:
T38
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B65847A0000Y038 Models
edacadModelUrl:
/en/models/3914403
Core Type:
EP
Inductance Factor (Al):
18.7 µH
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
0.965" (24.50mm)
standardLeadTime:
12 Weeks
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
0.51
Series:
EP20
Effective Area (Ae) mm²:
78
Supplier Device Package:
EP 20
Height:
0.425" (10.80mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65847A0000Y038. The product features 2300 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 0.602" (15.30mm) wide. Features effective permeability of 7630. It features -30%, +40% of tolerance value. Its minimum core cross-section is 60. A quality product with a nice uncoated finish. A 40 of effective length. It features 3120 effective magnetic volume. The product is made from highly stable and reliable t38. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a ep core. It carries 18.7 µh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 0.965" (24.50mm). It has a long 12 weeks standard lead time. The product ep20, is a highly preferred choice for users. Features 78 effective area. ep 20 is the supplier device package value. In addition, the height is 0.425" (10.80mm). The product is designated with the ear99 code number.

pdf icon
B65847,48 Series Datasheet(Datasheets)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)
