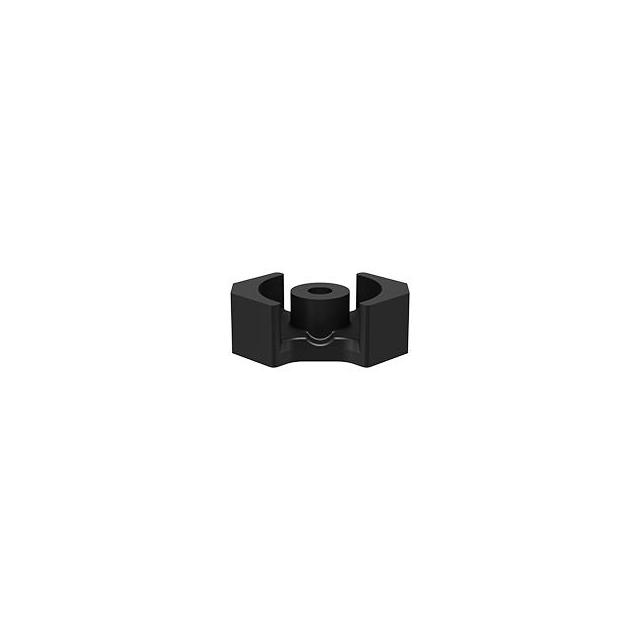

EPCOS - TDK Electronics B65803N0016A001

B65803N0016A001 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
80
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
0.181" (4.60mm)
Effective Permeability (µe):
24.2
Tolerance:
±3%
Finish:
Uncoated
Effective Length (le) mm:
21.0
Effective Magnetic Volume (Ve) mm³:
231.0
Material:
K1
REACH Status:
REACH Unaffected
Gap:
Gapped
Core Type:
RM
Manufacturer:
EPCOS - TDK Electronics
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
0.433" (11.00mm)
standardLeadTime:
7 Weeks
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
1.9
Series:
RM4
Effective Area (Ae) mm²:
11.0
Supplier Device Package:
RM 4
Height:
0.207" (5.25mm)
Packaging:
Box
Inductance Factor (Al):
16 nH
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65803N0016A001. The product features 80 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 0.181" (4.60mm) wide. Features effective permeability of 24.2. It features ±3% of tolerance value. A quality product with a nice uncoated finish. A 21.0 of effective length. It features 231.0 effective magnetic volume. The product is made from highly stable and reliable k1. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a rm core. The epcos - tdk electronics's product offers user-desired applications. Its typical moisture sensitivity level is not applicable. Its accurate length is 0.433" (11.00mm). It has a long 7 weeks standard lead time. The product rm4, is a highly preferred choice for users. Features 11.0 effective area. rm 4 is the supplier device package value. In addition, the height is 0.207" (5.25mm). In addition, box is the available packaging type of the product. It carries 16 nh of inductance factor. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Supplier Change 23/Oct/2020(PCN Assembly/Origin)
pdf icon
B65803,04,06, B65539 Series Datasheet(Datasheets)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)
