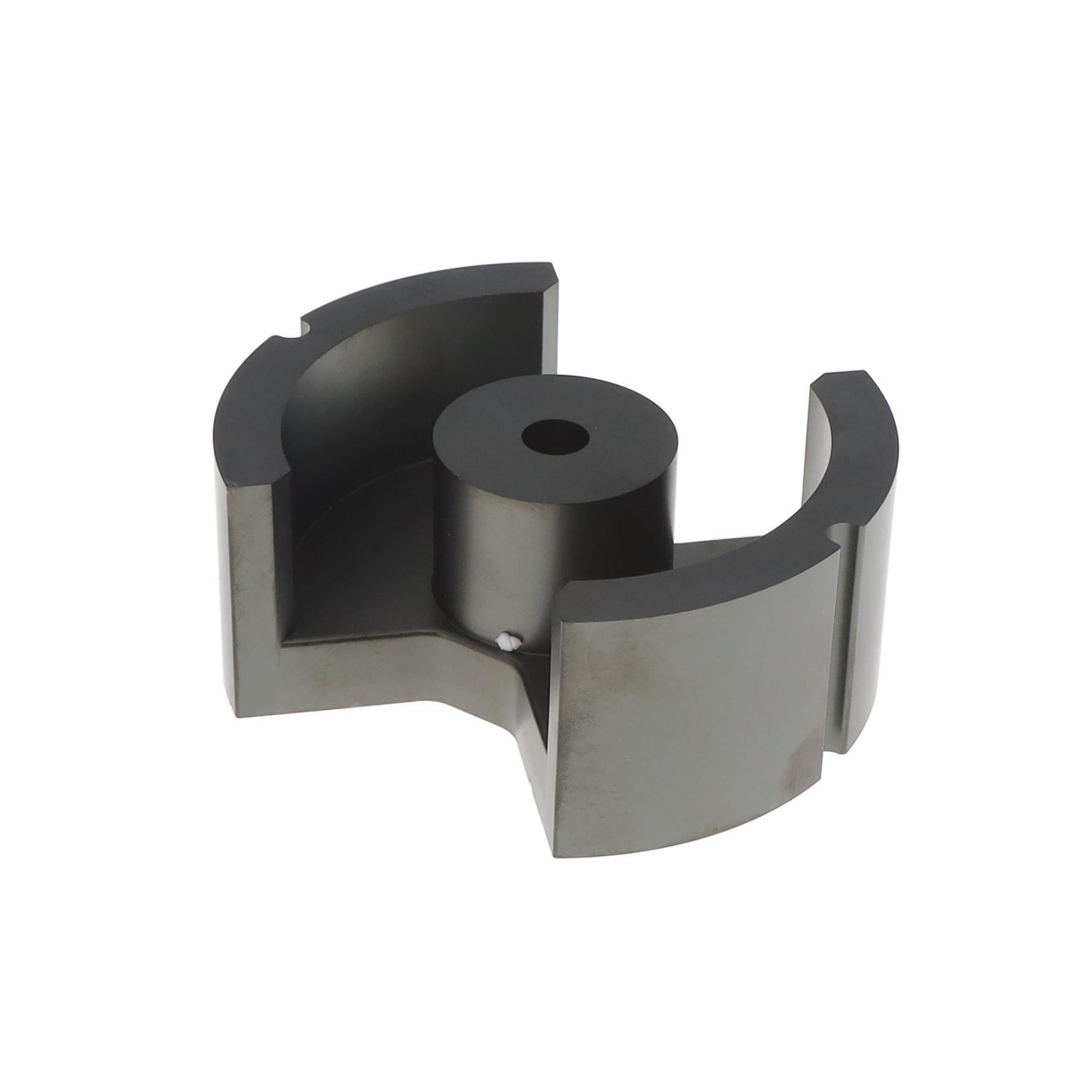

EPCOS - TDK Electronics B65713A0400A027

B65713A0400A027 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2000
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Effective Permeability (µe):
51
Tolerance:
±3%
Minimum Core Cross Section (Amin) mm²:
700
Finish:
Uncoated
Effective Length (le) mm:
146
Effective Magnetic Volume (Ve) mm³:
133000
Material:
N27
REACH Status:
REACH Unaffected
Gap:
Gapped
edacadModel:
B65713A0400A027 Models
edacadModelUrl:
/en/models/3913972
Core Type:
PM
Inductance Factor (Al):
400 nH
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
-
standardLeadTime:
12 Weeks
Diameter:
3.425" (87.00mm)
Core Factor (ΣI/A) mm⁻¹:
0.16
Series:
PM87/70
Effective Area (Ae) mm²:
910
Supplier Device Package:
PM 87 x 70
Height:
1.378" (35.00mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65713A0400A027. The product features 2000 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Features effective permeability of 51. It features ±3% of tolerance value. Its minimum core cross-section is 700. A quality product with a nice uncoated finish. A 146 of effective length. It features 133000 effective magnetic volume. The product is made from highly stable and reliable n27. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a pm core. It carries 400 nh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 12 weeks standard lead time. Its diameter is 3.425" (87.00mm). The product pm87/70, is a highly preferred choice for users. Features 910 effective area. pm 87 x 70 is the supplier device package value. In addition, the height is 1.378" (35.00mm). The product is designated with the ear99 code number.
