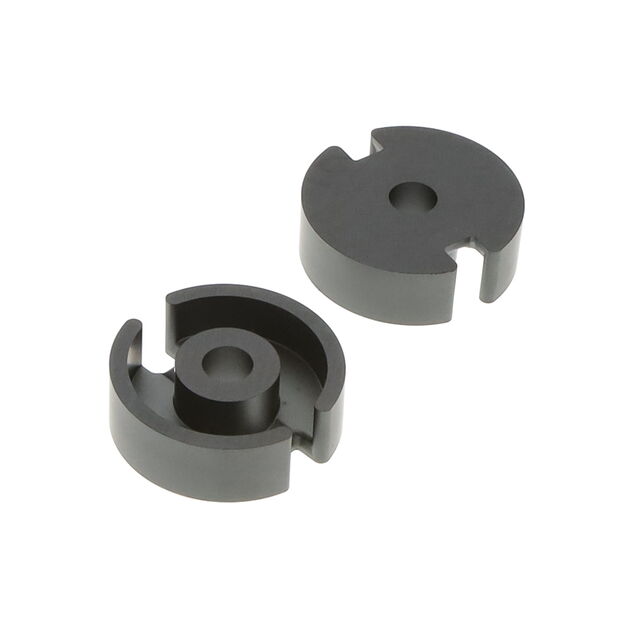

EPCOS - TDK Electronics B65671D1000J048

B65671D1000J048 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Effective Permeability (µe):
318.0
Tolerance:
±5%
Finish:
Uncoated
Effective Length (le) mm:
37.2
Effective Magnetic Volume (Ve) mm³:
3460.0
title:
B65671D1000J048
Material:
N48
REACH Status:
REACH Unaffected
Gap:
Gapped
edacadModel:
B65671D1000J048 Models
edacadModelUrl:
/en/models/3913905
Core Type:
P (Pot Core)
Manufacturer:
EPCOS - TDK Electronics
Minimum Core Cross Section (Amin) mm²:
76.5
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
-
standardLeadTime:
15 Weeks
Diameter:
1.024" (26.00mm)
Core Factor (ΣI/A) mm⁻¹:
0.4
Series:
P26/16
Effective Area (Ae) mm²:
93.0
Supplier Device Package:
P 26 x 16
Height:
0.321" (8.15mm)
Packaging:
Box
Inductance Factor (Al):
1 µH
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65671D1000J048. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Features effective permeability of 318.0. It features ±5% of tolerance value. A quality product with a nice uncoated finish. A 37.2 of effective length. It features 3460.0 effective magnetic volume. The product is made from highly stable and reliable n48. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a p (pot core) core. The epcos - tdk electronics's product offers user-desired applications. Its minimum core cross-section is 76.5. Its typical moisture sensitivity level is 1 (unlimited). It has a long 15 weeks standard lead time. Its diameter is 1.024" (26.00mm). The product p26/16, is a highly preferred choice for users. Features 93.0 effective area. p 26 x 16 is the supplier device package value. In addition, the height is 0.321" (8.15mm). In addition, box is the available packaging type of the product. It carries 1 µh of inductance factor. The product is designated with the ear99 code number.
