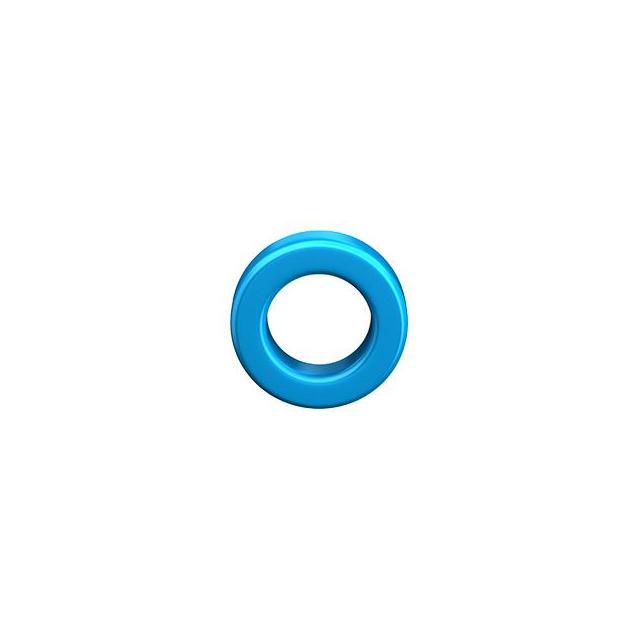

EPCOS - TDK Electronics B64290L0696X037

B64290L0696X037 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
5500
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Tolerance:
±25%
Finish:
Epoxy
Effective Length (le) mm:
178.6
Effective Magnetic Volume (Ve) mm³:
22980
Material:
T37
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B64290L0696X037 Models
edacadModelUrl:
/en/models/3913589
Core Type:
Toroid
Inductance Factor (Al):
5 µH
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
16 Weeks
Diameter:
2.756" (70.00mm)
Core Factor (ΣI/A) mm⁻¹:
1.39
Series:
TX68/48/13
Effective Area (Ae) mm²:
128.7
Supplier Device Package:
-
Height:
0.559" (14.20mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B64290L0696X037. The product features 5500 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. It features ±25% of tolerance value. A quality product with a nice epoxy finish. A 178.6 of effective length. It features 22980 effective magnetic volume. The product is made from highly stable and reliable t37. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a toroid core. It carries 5 µh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is not applicable. It has a long 16 weeks standard lead time. Its diameter is 2.756" (70.00mm). The product tx68/48/13, is a highly preferred choice for users. Features 128.7 effective area. In addition, the height is 0.559" (14.20mm). The product is designated with the ear99 code number.

pdf icon
Ferrites, Accessories General Info(Datasheets)
pdf icon
B64290(A,L)0696 Datasheet(Datasheets)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)
