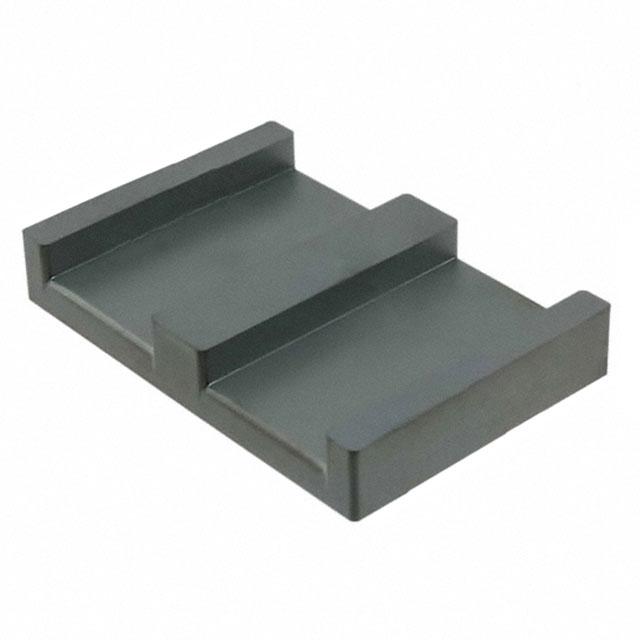

EPCOS - TDK Electronics B66291P0000X149

B66291P0000X149 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
1500
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
1.098" (27.90mm)
Effective Permeability (µe):
1030
Tolerance:
±25%
Minimum Core Cross Section (Amin) mm²:
225
Finish:
Uncoated
Effective Length (le) mm:
50.4
Effective Magnetic Volume (Ve) mm³:
11500
Material:
N49
REACH Status:
REACH Unaffected
Gap:
Ungapped
Core Type:
I
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1.700" (43.20mm)
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
0.22
Series:
-
Effective Area (Ae) mm²:
229
Supplier Device Package:
I 43 x 4 x 28
Height:
0.161" (4.10mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B66291P0000X149. The product features 1500 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 1.098" (27.90mm) wide. Features effective permeability of 1030. It features ±25% of tolerance value. Its minimum core cross-section is 225. A quality product with a nice uncoated finish. A 50.4 of effective length. It features 11500 effective magnetic volume. The product is made from highly stable and reliable n49. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a i core. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1.700" (43.20mm). Features 229 effective area. i 43 x 4 x 28 is the supplier device package value. In addition, the height is 0.161" (4.10mm). The product is designated with the ear99 code number.

pdf icon
B66291G/P, B66461G/P(Datasheets)
pdf icon
Mult Dev Design Chg 22/Feb/2019(PCN Design/Specification)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search B66291P0000X149 on website for other similar products.
We accept all major payment methods for all products including ET20620366. Please check your shopping cart at the time of order.
You can order EPCOS - TDK Electronics brand products with B66291P0000X149 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Cores category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EPCOS - TDK Electronics B66291P0000X149. You can also check on our website or by contacting our customer support team for further order details on EPCOS - TDK Electronics B66291P0000X149.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20620366 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS - TDK Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20620366.
Yes. We ship B66291P0000X149 Internationally to many countries around the world.
