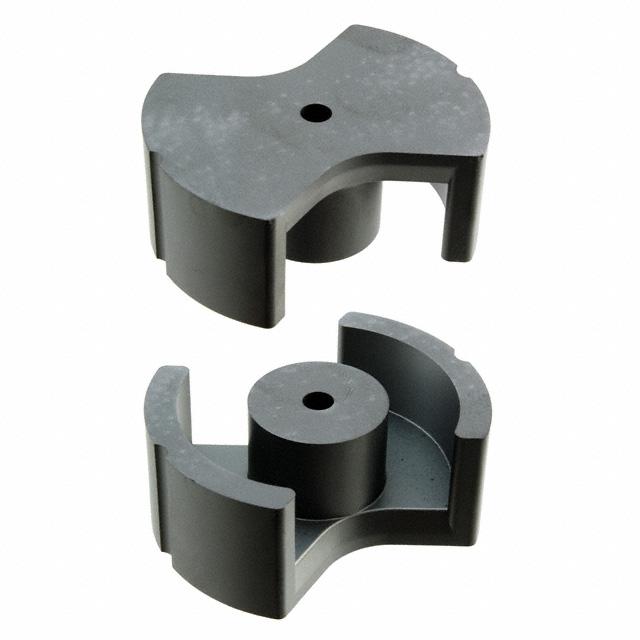

EPCOS - TDK Electronics B65684A0000R027

B65684A0000R027 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2000
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Effective Permeability (µe):
1400
Tolerance:
-20%, +30%
Minimum Core Cross Section (Amin) mm²:
470
Finish:
Uncoated
Effective Length (le) mm:
109
Effective Magnetic Volume (Ve) mm³:
62000
Material:
N27
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B65684A0000R027 Models
edacadModelUrl:
/en/models/3913934
Core Type:
PM
Inductance Factor (Al):
9.2 µH
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
-
standardLeadTime:
11 Weeks
Diameter:
2.441" (62.00mm)
Core Factor (ΣI/A) mm⁻¹:
0.191
Series:
PM62/49
Effective Area (Ae) mm²:
570
Supplier Device Package:
PM 62 x 49
Height:
0.965" (24.50mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65684A0000R027. The product features 2000 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Features effective permeability of 1400. It features -20%, +30% of tolerance value. Its minimum core cross-section is 470. A quality product with a nice uncoated finish. A 109 of effective length. It features 62000 effective magnetic volume. The product is made from highly stable and reliable n27. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a pm core. It carries 9.2 µh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 11 weeks standard lead time. Its diameter is 2.441" (62.00mm). The product pm62/49, is a highly preferred choice for users. Features 570 effective area. pm 62 x 49 is the supplier device package value. In addition, the height is 0.965" (24.50mm). The product is designated with the ear99 code number.

pdf icon
TDK Electronics RoHS & REACH(Environmental Information)
pdf icon
Mult Devs Specification 13/May/2022(PCN Design/Specification)
pdf icon
B65684,85 Series Datasheet(Datasheets)
