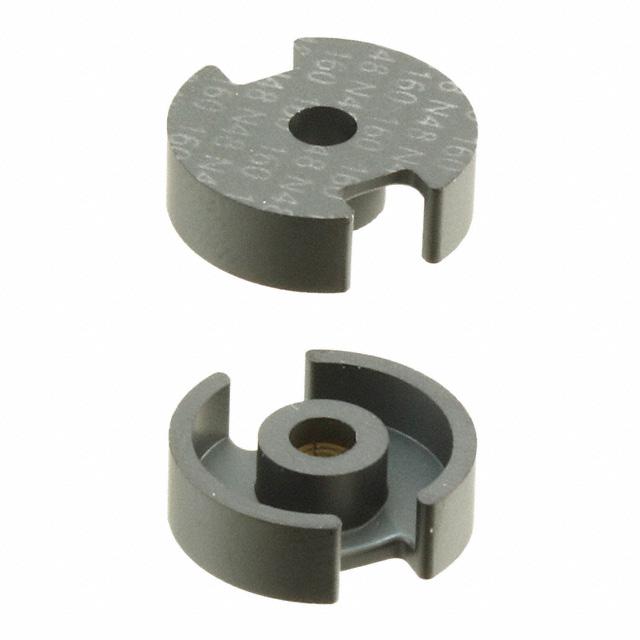

EPCOS - TDK Electronics B65541T0160G048

B65541T0160G048 EPCOS - TDK Electronics
B65541T0160G048
EPCOS - TDK Electronics

Product Information

HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Effective Permeability (µe):
102.0
Tolerance:
±3%
Finish:
Uncoated
Effective Length (le) mm:
20.0
Effective Magnetic Volume (Ve) mm³:
500.0
Material:
N48
REACH Status:
REACH Unaffected
Gap:
Gapped
Core Type:
P (Pot Core)
Manufacturer:
EPCOS - TDK Electronics
Minimum Core Cross Section (Amin) mm²:
20.0
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
10 Weeks
Diameter:
0.563" (14.30mm)
Core Factor (ΣI/A) mm⁻¹:
0.8
Series:
P14/8
Effective Area (Ae) mm²:
25.0
Supplier Device Package:
P 14 x 8
Height:
0.167" (4.25mm)
Packaging:
Box
Inductance Factor (Al):
160 nH
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65541T0160G048. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Features effective permeability of 102.0. It features ±3% of tolerance value. A quality product with a nice uncoated finish. A 20.0 of effective length. It features 500.0 effective magnetic volume. The product is made from highly stable and reliable n48. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a p (pot core) core. The epcos - tdk electronics's product offers user-desired applications. Its minimum core cross-section is 20.0. Its typical moisture sensitivity level is not applicable. It has a long 10 weeks standard lead time. Its diameter is 0.563" (14.30mm). The product p14/8, is a highly preferred choice for users. Features 25.0 effective area. p 14 x 8 is the supplier device package value. In addition, the height is 0.167" (4.25mm). In addition, box is the available packaging type of the product. It carries 160 nh of inductance factor. The product is designated with the ear99 code number.
