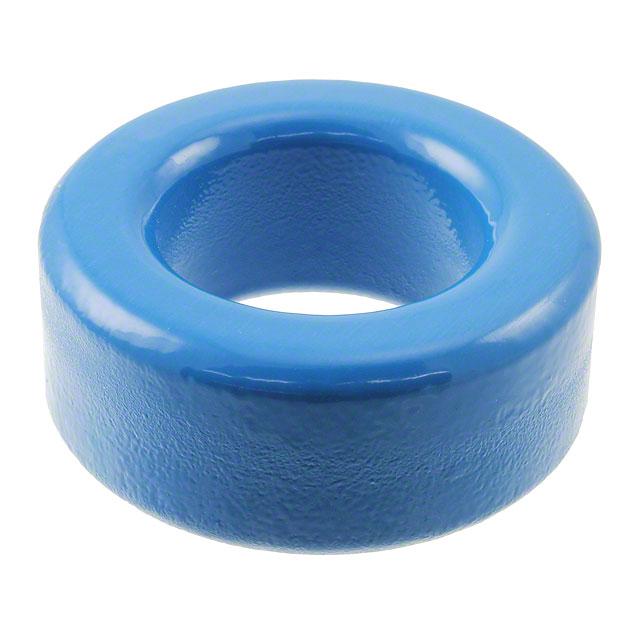

EPCOS - TDK Electronics B64290L0659X087

B64290L0659X087 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2200
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Tolerance:
±25%
Minimum Core Cross Section (Amin) mm²:
125.3
Finish:
Epoxy
Effective Length (le) mm:
96.29
Effective Magnetic Volume (Ve) mm³:
12070
Material:
N87
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B64290L0659X087 Models
edacadModelUrl:
/en/models/3913578
Core Type:
Toroid
Inductance Factor (Al):
3.59 µH
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
19 Weeks
Diameter:
1.646" (41.80mm)
Core Factor (ΣI/A) mm⁻¹:
0.77
Series:
TX40/24/16
Effective Area (Ae) mm²:
125.3
Supplier Device Package:
-
Height:
0.677" (17.20mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B64290L0659X087. The product features 2200 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. It features ±25% of tolerance value. Its minimum core cross-section is 125.3. A quality product with a nice epoxy finish. A 96.29 of effective length. It features 12070 effective magnetic volume. The product is made from highly stable and reliable n87. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a toroid core. It carries 3.59 µh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is not applicable. It has a long 19 weeks standard lead time. Its diameter is 1.646" (41.80mm). The product tx40/24/16, is a highly preferred choice for users. Features 125.3 effective area. In addition, the height is 0.677" (17.20mm). The product is designated with the ear99 code number.

pdf icon
Ferrites, Accessories General Info(Datasheets)
pdf icon
B64290L0659 Datasheet(Datasheets)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search B64290L0659X087 on website for other similar products.
We accept all major payment methods for all products including ET20617949. Please check your shopping cart at the time of order.
You can order EPCOS - TDK Electronics brand products with B64290L0659X087 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Cores category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EPCOS - TDK Electronics B64290L0659X087. You can also check on our website or by contacting our customer support team for further order details on EPCOS - TDK Electronics B64290L0659X087.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20617949 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS - TDK Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20617949.
Yes. We ship B64290L0659X087 Internationally to many countries around the world.
