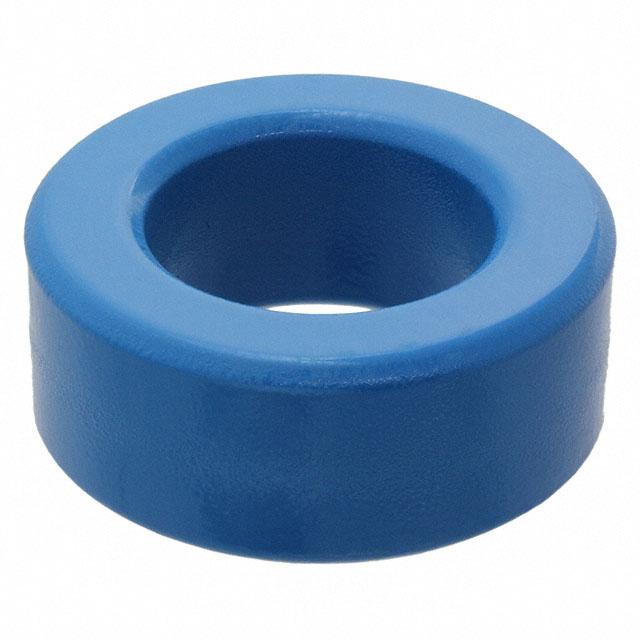

EPCOS - TDK Electronics B64290L0699X087

B64290L0699X087 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2200
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Tolerance:
±25%
Finish:
Epoxy
Effective Length (le) mm:
152.1
Effective Magnetic Volume (Ve) mm³:
46530.0
Material:
N87
REACH Status:
REACH Unaffected
Gap:
Ungapped
edacadModel:
B64290L0699X087 Models
edacadModelUrl:
/en/models/3913597
Core Type:
Toroid
Manufacturer:
EPCOS - TDK Electronics
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
11 Weeks
Diameter:
2.571" (65.30mm)
Core Factor (ΣI/A) mm⁻¹:
0.5
Series:
TX63/38/25
Effective Area (Ae) mm²:
305.9
Supplier Device Package:
-
Height:
1.047" (26.60mm)
Packaging:
Box
Inductance Factor (Al):
5 µH
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B64290L0699X087. The product features 2200 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. It features ±25% of tolerance value. A quality product with a nice epoxy finish. A 152.1 of effective length. It features 46530.0 effective magnetic volume. The product is made from highly stable and reliable n87. In addition, it is reach unaffected. Gap Options: ungapped. Robust product with a toroid core. The epcos - tdk electronics's product offers user-desired applications. Its typical moisture sensitivity level is not applicable. It has a long 11 weeks standard lead time. Its diameter is 2.571" (65.30mm). The product tx63/38/25, is a highly preferred choice for users. Features 305.9 effective area. In addition, the height is 1.047" (26.60mm). In addition, box is the available packaging type of the product. It carries 5 µh of inductance factor. The product is designated with the ear99 code number.
