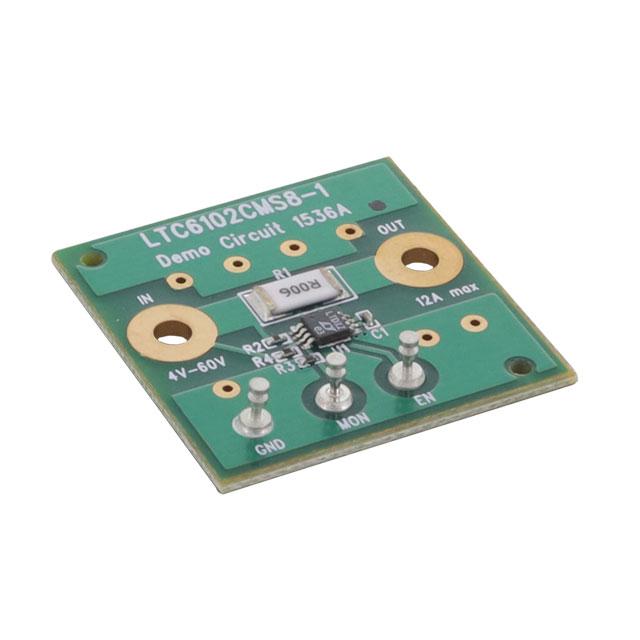

Analog Devices Inc. DC1536A

DC1536A Analog Devices Inc.
Analog Devices Inc.

Product Information

HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
1 mA
Voltage - Supply, Single/Dual (±):
4V ~ 60V
REACH Status:
REACH Unaffected
Output Type:
-
Board Type:
Fully Populated
Package:
Bulk
Current - Supply (Main IC):
420 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
-
standardLeadTime:
8 Weeks
Channels per IC:
1 - Single
Utilized IC / Part:
LTC6102-1
Series:
-
Supplied Contents:
Board(s)
Amplifier Type:
Current Sense
Base Product Number:
DC1536
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1536A. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. It carries 1 ma output or channel current. It features a typical 4v ~ 60v voltage of single or dual. In addition, it is reach unaffected. It is a fully populated type. It is shipped in bulk package . The main IC has 420 µa of supply. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. It contains 1 - single channels per IC. Additionally, [Utilised IC / Part] is the used part of the product. The product is also supplied with contents, such as board(s). It is a sort of a current sense amplifier. Moreover, it corresponds to dc1536, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DC1536A Schematic(Design Resources)
pdf icon
DC1536 Quick Start Guide(Datasheets)
pdf icon
LTC6102(-1, HV) Datasheet(Datasheets)
