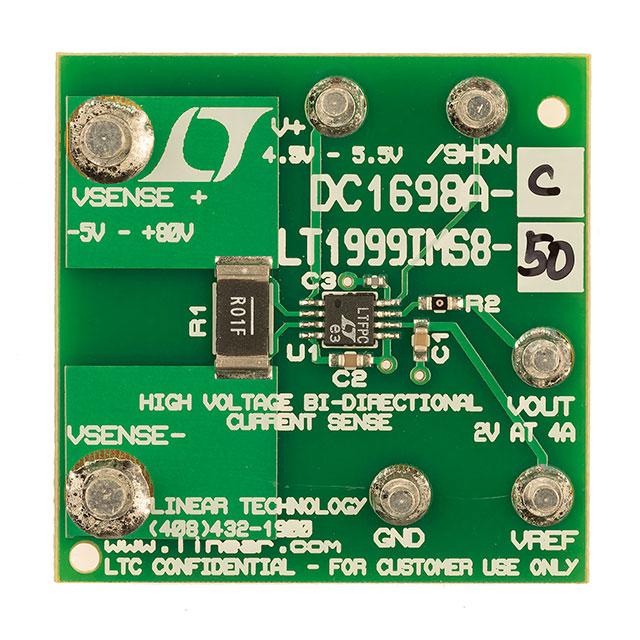

Analog Devices Inc. DC1698A-C

DC1698A-C Analog Devices Inc.
Analog Devices Inc.

Product Information

HTSUS:
8543.70.9860
RoHS Status:
ROHS3 Compliant
Voltage - Supply, Single/Dual (±):
4.5V ~ 5.5V
-3db Bandwidth:
2 MHz
REACH Status:
REACH Unaffected
Output Type:
-
Board Type:
Fully Populated
Package:
Bulk
Current - Supply (Main IC):
5.8 mA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
3V/µs
standardLeadTime:
8 Weeks
Channels per IC:
1 - Single
Utilized IC / Part:
LT1999
Series:
-
Supplied Contents:
Board(s)
Amplifier Type:
Current Sense
Base Product Number:
DC1698
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1698A-C. It is assigned with possible HTSUS value of 8543.70.9860. The product is rohs3 compliant. It features a typical 4.5v ~ 5.5v voltage of single or dual. A 2 mhz of bandwidth. In addition, it is reach unaffected. It is a fully populated type. It is shipped in bulk package . The main IC has 5.8 ma of supply. Its typical moisture sensitivity level is 1 (unlimited). The 3v/µs is the slew rate of the product. It has a long 8 weeks standard lead time. It contains 1 - single channels per IC. Additionally, [Utilised IC / Part] is the used part of the product. The product is also supplied with contents, such as board(s). It is a sort of a current sense amplifier. Moreover, it corresponds to dc1698, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DC1698A Schematic(Design Resources)
pdf icon
DC1698A Demo Manual(Manuals)
pdf icon
LT1999-10,20,50 Datasheet(Datasheets)
