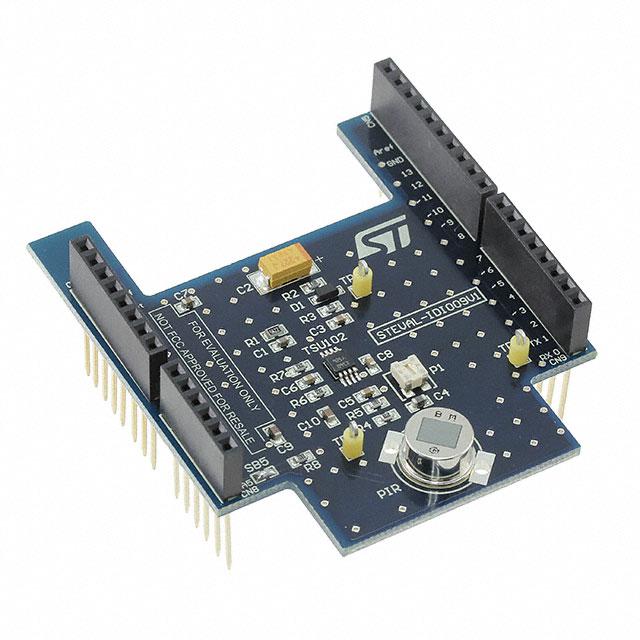

STMicroelectronics STEVAL-IDI009V1

STEVAL-IDI009V1 STMicroelectronics
STEVAL-IDI009V1
STMicroelectronics

Product Information

For Use With:
STM32 Nucleo
Sensor Technology:
PIR Sensor
Featured Device:
Murata IRA-E700ST0
Kit Classification:
Expansion Board
Function:
Passive Infrared (PIR)
Utilized IC / Part:
TSU102
HTSUS:
8473.30.1180
Package:
Bulk
Series:
-
RoHS Status:
Not applicable
REACH Status:
REACH Unaffected
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Base Product Number:
STEVAL
Platform:
Nucleo
Contents:
Board(s)
Type:
Sensor
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STEVAL-IDI009V1. The product is highly suitable for stm32 nucleo. The sensor utilises pir sensor, a standard technology in sensor markets. Featured Device murata ira-e700st0. The kit is classified as expansion board. It performs basic function of passive infrared (pir). Additionally, [Utilised IC / Part] is the used part of the product. It is assigned with possible HTSUS value of 8473.30.1180. It is shipped in bulk package . The product is not applicable. In addition, it is reach unaffected. Its typical moisture sensitivity level is 1 (unlimited). Moreover, it corresponds to steval, a base product number of the product. Platform Info: nucleo. Contents Include: board(s). It comes in sensor configuration. The product is designated with the ear99 code number.

pdf icon
STEVAL-IDI009V1 IR/TSU102 Board datasheet(Technical Reference)
pdf icon
STEVAL-IDI009V1 BOM(Design Resources)
pdf icon
STEVAL-IDI009V1 Schematic(Design Resources)
pdf icon
STEVAL-IDI009V1 Brief(Datasheets)
pdf icon
TSU101, 102, 104(Datasheets)
