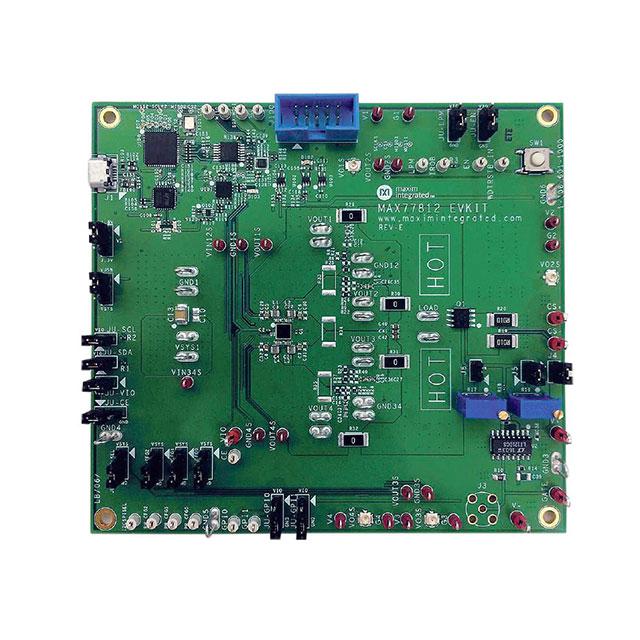

Analog Devices Inc./Maxim Integrated MAX77812EVKIT#

Enrgtech Part No: ET22596067
|
Manufacturer Part No:
MAX77812EVKIT#
|
Manufacturer: Analog Devices Inc./Maxim Integrated

MAX77812EVKIT- Analog Devices Inc./Maxim Integrated MAX77812EVKIT#

Product Information

Main Purpose:

DC/DC, Step Down

HTSUS:

8473.30.1180

RoHS Status:

Not applicable

Voltage - Input:

2.5V ~ 5.5V

Frequency - Switching:

REACH Status:

REACH Unaffected

Current - Output:

20A

Board Type:

Fully Populated

Package:

Box

Moisture Sensitivity Level (MSL):

1 (Unlimited)

standardLeadTime:

6 Weeks

Regulator Topology:

Buck

Checking for live stock

This is manufactured by Analog Devices Inc./Maxim Integrated. The manufacturer part number is MAX77812EVKIT#. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is not applicable. The possible product's input voltage is 2.5v ~ 5.5v. In addition, it is reach unaffected. While, the output current includes 20a. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 0.25v ~ 1.525v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to max77812, a base product number of the product. The output and type include 4, non-isolated.

MAX77812 Datasheet(Datasheets)

MAX77812 Evaluation Kit(Datasheets)

Generating a Higher Output Voltage than 1.525V Using the MAX77812(Mfg Application Notes)

MAX77812 PCB Layout Guide(Mfg Application Notes)

Factory-Programmable Parameters of the MAX77812(Mfg Application Notes)

Generating Greater System Efficiency for Single- to Multi-Cell Battery-Powered Designs(Mfg Application Notes)

Maxim Integrated RoHS Cert(Environmental Information)

Maxim Integrated REACH(Environmental Information)
