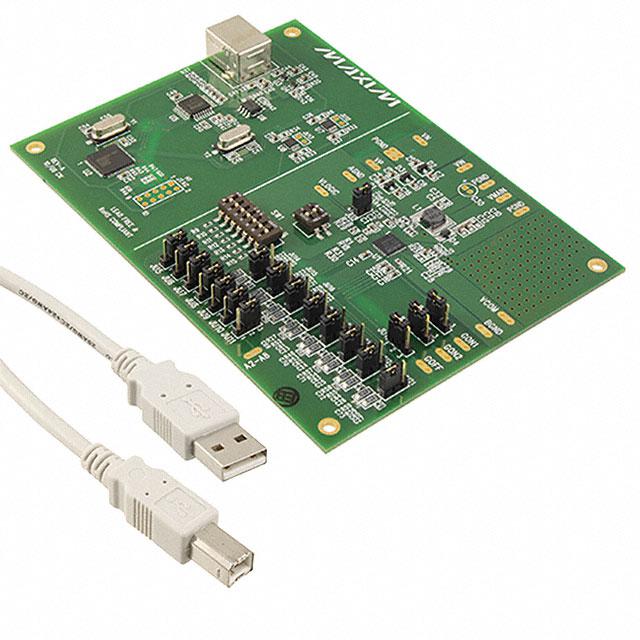

Analog Devices Inc./Maxim Integrated MAX17094EVKIT+

MAX17094EVKIT- Analog Devices Inc./Maxim Integrated MAX17094EVKIT+
Analog Devices Inc./Maxim Integrated

Product Information

Main Purpose:
Special Purpose DC/DC, LCD Supply
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Voltage - Input:
1.8V ~ 5.5V
Frequency - Switching:
-
REACH Status:
REACH Unaffected
Current - Output:
300mA, 250mA, 150mA, 30mA, 30mA
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Regulator Topology:
Boost, Inverting
Utilized IC / Part:
MAX17094
Series:
-
Voltage - Output:
2.5V, 3.2V, 8V, 21.5V, -6.5V
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
MAX170
Outputs and Type:
5, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc./Maxim Integrated. The manufacturer part number is MAX17094EVKIT+. Basic Purpose: special purpose dc/dc, lcd supply. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 1.8v ~ 5.5v. In addition, it is reach unaffected. While, the output current includes 300ma, 250ma, 150ma, 30ma, 30ma. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The product offers boost, inverting regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 2.5v, 3.2v, 8v, 21.5v, -6.5v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to max170, a base product number of the product. The output and type include 5, non-isolated.

pdf icon
Mult Dev 08/Apr/2020(PCN Obsolescence/ EOL)
pdf icon
MAX17094 Datasheet(Datasheets)
pdf icon
MAX17094 Eval Kit(Datasheets)
pdf icon
Maxim Integrated RoHS Cert(Environmental Information)
pdf icon
Maxim Integrated REACH(Environmental Information)
