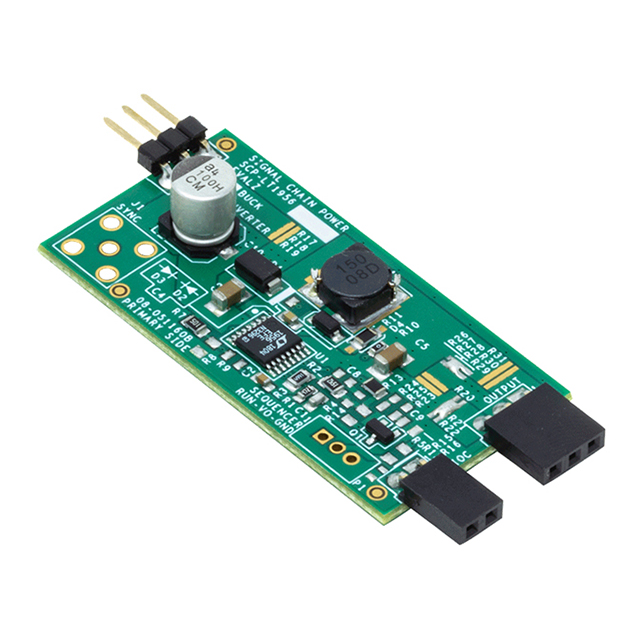

Analog Devices Inc. SCP-LT1956-IEVALZ

SCP-LT1956-IEVALZ Analog Devices Inc.
SCP-LT1956-IEVALZ
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Note:
-
Voltage - Input:
48V
Frequency - Switching:
500kHz
title:
SCP-LT1956-IEVALZ
REACH Status:
REACH Unaffected
Current - Output:
1.5A
Manufacturer:
Analog Devices Inc.
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
10 Weeks
Regulator Topology:
Buck
Utilized IC / Part:
LT1956
Series:
SCP
Voltage - Output:
-24V
Packaging:
Bulk
Supplied Contents:
Board(s)
ECCN:
EAR99
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is SCP-LT1956-IEVALZ. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The possible product's input voltage is 48v. The switching frequency of the standard product is 500khz. In addition, it is reach unaffected. While, the output current includes 1.5a. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is not applicable. It has a long 10 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. The product scp, is a highly preferred choice for users. Furthermore, the output voltage is -24v. In addition, bulk is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. The output and type include 1, non-isolated.

pdf icon
SCP-LT1956-IEVALZ Schematic(Design Resources)
pdf icon
SCP-LT1956-IEVALZ Demo Manual(Manuals)
