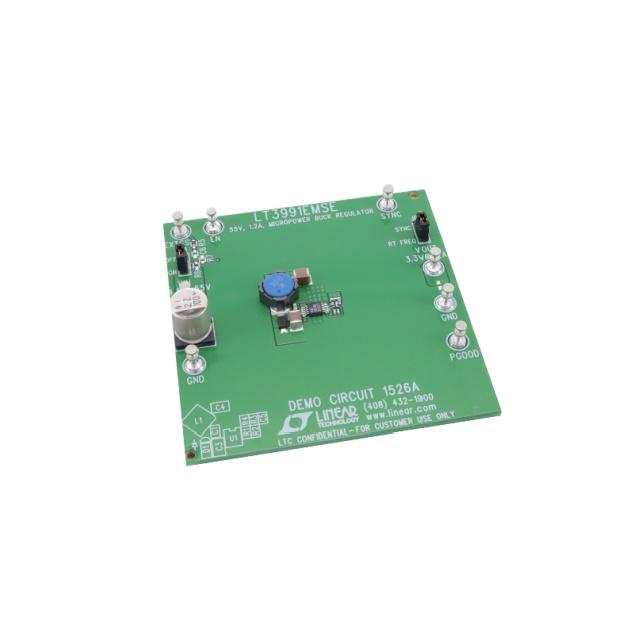

Analog Devices Inc. DC1526A

DC1526A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Voltage - Input:
4.5V ~ 55V
Frequency - Switching:
2MHz
REACH Status:
REACH Unaffected
Current - Output:
1.2A
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Regulator Topology:
Buck
Utilized IC / Part:
LT3991
Series:
-
Voltage - Output:
3.3V
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC1526
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1526A. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 4.5v ~ 55v. The switching frequency of the standard product is 2mhz. In addition, it is reach unaffected. While, the output current includes 1.2a. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 3.3v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc1526, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
DC1526A Quick Start Guide(Datasheets)
pdf icon
LT3991 Datasheet(Datasheets)
pdf icon
DC1526A Schematic(Design Resources)
