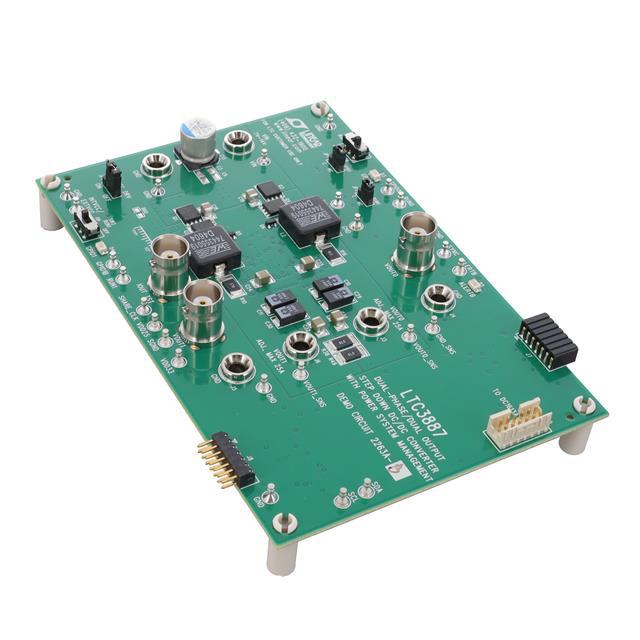

Name: DC2263A-B, Analog Devices Inc.
Brand: Analog Devices Inc.
SKU: ET20203900
Price: 254.86 GBP
Availability: InStock

(0)

Product Information

Main Purpose:

DC/DC, Step Down

HTSUS:

8504.40.9580

RoHS Status:

ROHS3 Compliant

Note:

Voltage - Input:

7V ~ 14V

Frequency - Switching:

425kHz

REACH Status:

REACH Unaffected

Current - Output:

50A

Manufacturer:

Analog Devices Inc.

Board Type:

Fully Populated

Moisture Sensitivity Level (MSL):

1 (Unlimited)

standardLeadTime:

8 Weeks

Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC2263A-B. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The possible product's input voltage is 7v ~ 14v. The switching frequency of the standard product is 425khz. In addition, it is reach unaffected. While, the output current includes 50a. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 0.8v ~ 1.8v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc2263, a base product number of the product. The output and type include 1, non-isolated.

LTpowerCAD II Quick Start Guide(Getting Started Guide)

DC2263A Demo Manual(Manuals)

LTC3887, LTC3887-1 Datasheet(Datasheets)

Care, Feeding of FPGA Power Supplies: A How, Why Guide to Success(Other Related Documents)

DC2263A Schematic(Product Drawings)
