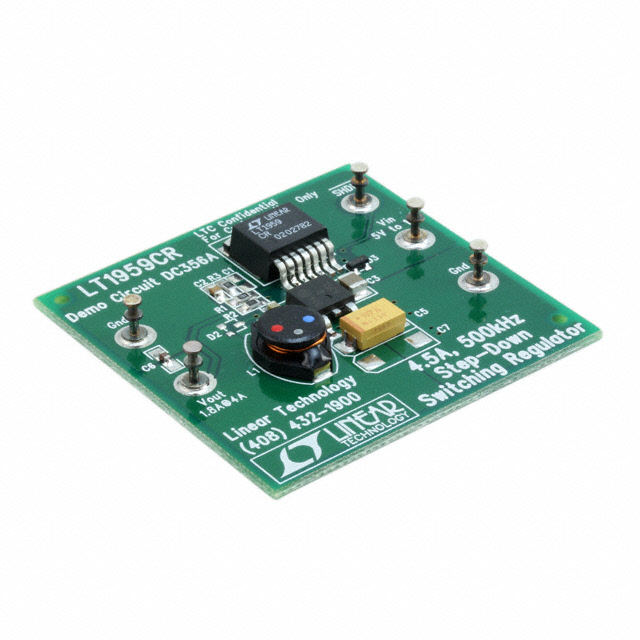

Analog Devices Inc. DC356A

DC356A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Note:
-
Voltage - Input:
4.5V ~ 15V
Frequency - Switching:
500kHz
title:
DC356A
REACH Status:
REACH Unaffected
Current - Output:
4.3A
Manufacturer:
Analog Devices Inc.
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Regulator Topology:
Buck
Utilized IC / Part:
LT1959
Series:
-
Voltage - Output:
1.8V
Packaging:
Box
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC356
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC356A. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 4.5v ~ 15v. The switching frequency of the standard product is 500khz. In addition, it is reach unaffected. While, the output current includes 4.3a. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 1 (unlimited). The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 1.8v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc356, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
DC356A Schematic(Design Resources)
pdf icon
DC355/6 Demo Manual(Manuals)
pdf icon
LT1959(Datasheets)
