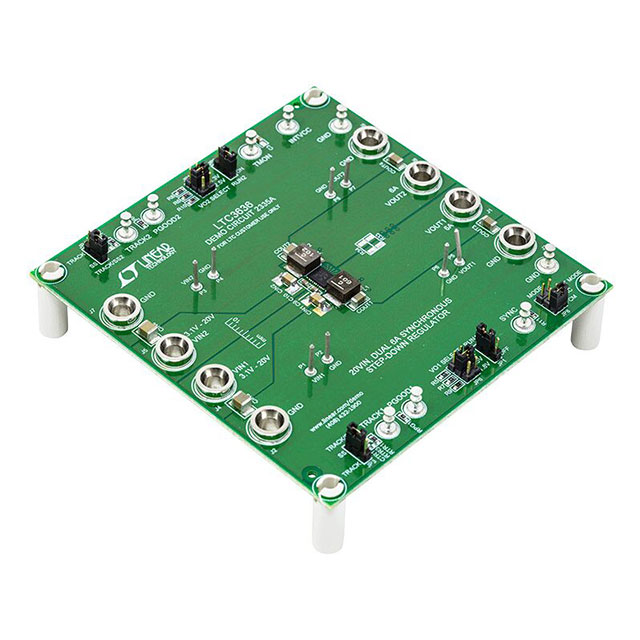

Analog Devices Inc. DC2335A

Enrgtech Part No: ET20162324
|
Manufacturer Part No:
DC2335A
|
Manufacturer: Analog Devices Inc.

Product Information

Main Purpose:

DC/DC, Step Down

HTSUS:

8504.40.9580

RoHS Status:

ROHS3 Compliant

Note:

Voltage - Input:

3.1V ~ 20V

Frequency - Switching:

1MHz

title:

DC2335A

REACH Status:

REACH Unaffected

Current - Output:

6A, 6A

Manufacturer:

Analog Devices Inc.

Board Type:

Fully Populated

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC2335A. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The possible product's input voltage is 3.1v ~ 20v. The switching frequency of the standard product is 1mhz. In addition, it is reach unaffected. While, the output current includes 6a, 6a. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 1 (unlimited). It has a long 10 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 1.5v, 3.3v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc2335, a base product number of the product. The output and type include 2, non-isolated.

DC2335A Schematic(Design Resources)

LTC3636(-1) Datasheet(Datasheets)

DC2335A Demo Manual(Datasheets)
