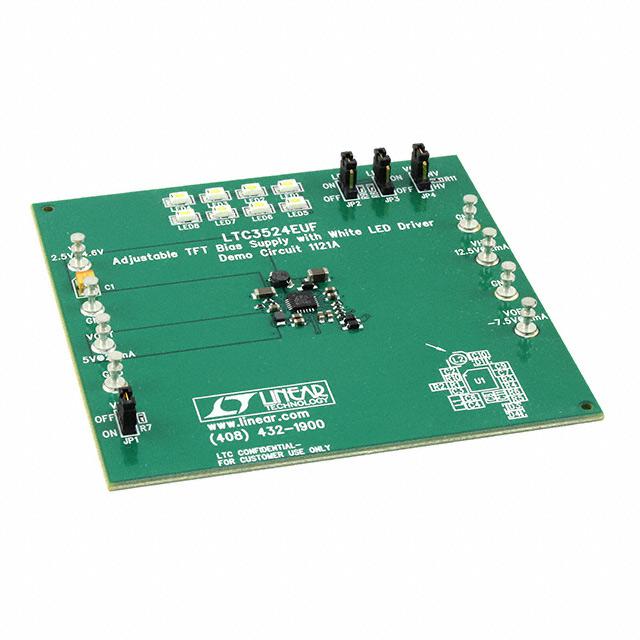

Analog Devices Inc. DC1121A

DC1121A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
Special Purpose DC/DC, LCD Supply
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Voltage - Input:
2.5V ~ 4.6V
Frequency - Switching:
1.5MHz
REACH Status:
REACH Unaffected
Current - Output:
25mA, 2mA, 2mA
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Regulator Topology:
Boost
Utilized IC / Part:
LTC3524
Series:
-
Voltage - Output:
5V, 12.5V, -7.5V
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC1121
Outputs and Type:
3, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1121A. Basic Purpose: special purpose dc/dc, lcd supply. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 2.5v ~ 4.6v. The switching frequency of the standard product is 1.5mhz. In addition, it is reach unaffected. While, the output current includes 25ma, 2ma, 2ma. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers boost regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 5v, 12.5v, -7.5v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc1121, a base product number of the product. The output and type include 3, non-isolated.

pdf icon
LTC3524(Datasheets)
pdf icon
DC1121A Quick Start Guide(Datasheets)
pdf icon
DC1121A Schematic(Design Resources)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search DC1121A on website for other similar products.
We accept all major payment methods for all products including ET20159487. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with DC1121A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. DC1121A. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. DC1121A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20159487 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET20159487.
Yes. We ship DC1121A Internationally to many countries around the world.
