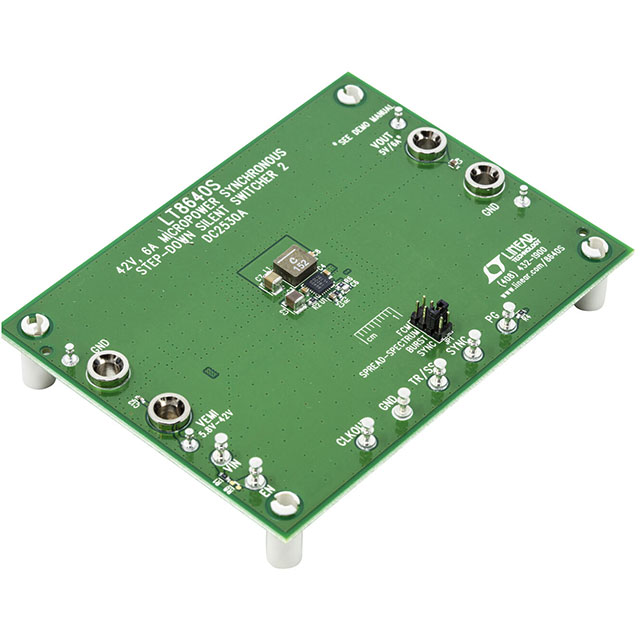

Analog Devices Inc. DC2530A

DC2530A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Note:
-
Voltage - Input:
5.8V ~ 42V
Frequency - Switching:
2MHz
title:
DC2530A
REACH Status:
REACH Unaffected
Current - Output:
6A
Manufacturer:
Analog Devices Inc.
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
10 Weeks
Regulator Topology:
Buck
Utilized IC / Part:
LT8640S
Series:
Silent Switcher®2
Voltage - Output:
4.85V ~ 5.15V
Packaging:
Box
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC2530
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC2530A. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The possible product's input voltage is 5.8v ~ 42v. The switching frequency of the standard product is 2mhz. In addition, it is reach unaffected. While, the output current includes 6a. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 1 (unlimited). It has a long 10 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. The product silent switcher®2, is a highly preferred choice for users. Furthermore, the output voltage is 4.85v ~ 5.15v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc2530, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
DC2530A Demo Manual(Manuals)
pdf icon
LT8640S, LT8643S Datasheet(Datasheets)
pdf icon
DC2530A Schematic(Design Resources)
pdf icon
Silent Switcher Devices Are Quiet, Simple(Other Related Documents)
